| Poles Number: | 2P,4P |
|---|---|
| Type: | Residual Current |
| Model Number: | ID RCCB |
| Brand Name: | BSD |
| Place of Origin: | China (Mainland) |
| Service: | OEM and ODM |
| Certificate: | UL ,CE ,RoHS ,ISO9001 ,IEC60252 |
| Leakage acting current: | 30mA, 100mA |
| Rate current: | 16A ,25A ,40A,63A |
| Delivery time: | 2 weeks |
Quick Details
Specifications

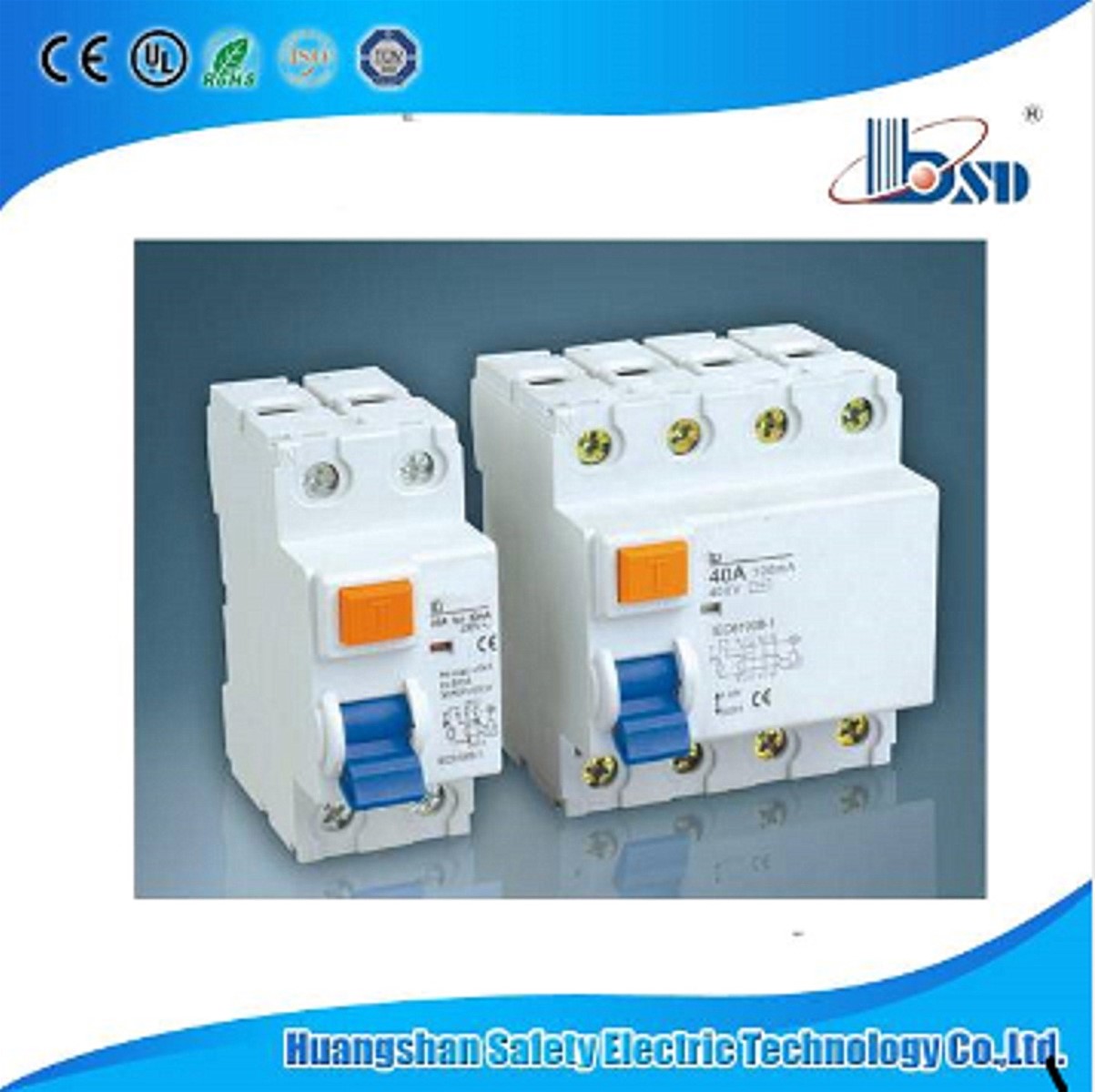

Specifications ID Residual Current Circuit Breaker
Rating up to 100A
Breaking capacity up to 6kA
Model No: ID
Rated Current: 16, 25, 40, 63, 80, 100A
Sensetivity: 10, 30, 100, 300, 500mA
Rated Voltage: 230VAC(2P), 400VAC(4P)
No. of Pole: 2P, 4P
Type: Type AC and Type A
Breaking Capacity: 6000A
Standards: IECEN 61008
| Rated Conditional Short-Circuit Curren | Inc 10ka |
| Rated Current,in | 16,25,32,40,63A |
| Rate Sensitivity Currents, IΔn | 10,30,100,300mA |
| Number of Poles | 2(1+N), 4 (3+N) Pole |
| Rated Voltage | 2p:230VAC 4p:230/400VAC |
| Type of Trip | Electro-Magnetic Release |
| Type of Terminal | Pin Type |
