| Type: | Other |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | ISO |
| Dimension(L*W*H): | 953m *810mm *1410mm |
| Weight: | 300KG |
| Model Number: | YY301/302 |
| Brand Name: | YAYI MACHINERY |
| Place of Origin: | China (Mainland) |
| Power: | 4kw/12kw |
| Voltage: | Alternating current 380V 50HZ, three phases and five lines |
| Driven Type: | Electric |
| Automatic Grade: | Automatic |
| Packaging Material: | Wood |
| Packaging Type: | |
| Application: | Apparel,Beverage,Chemical,Commodity,Food,Machinery & Hardware,Medical,Textiles |
| Condition: | New |
| Packaging Type:: | crate/ box |
| Usage:: | Making foldable box |
| Warranty:: | 1 year |
| Raw materials:: | Galvanized steel |
Quick Details
Specifications
the following example is for you reference.
1.Brief Introduction:

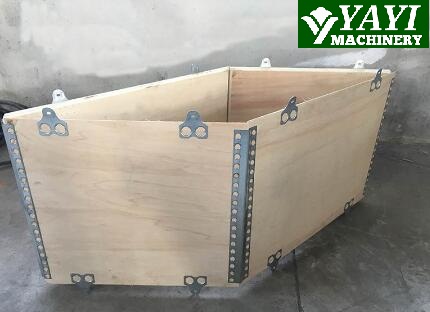

Automatic foldable crate production line is used for making foldable crate crates.
this is a production line for plywood foldable crate making.
2.Techincal parameters:
|
ype |

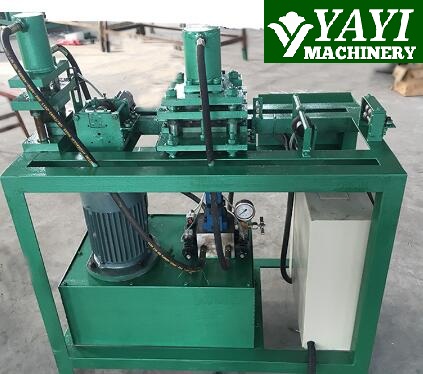

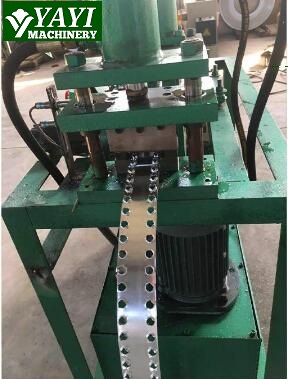

No nail crate double hole steel strip machine |
|
External unit dimension |
L=953mm B=810mm H=1410mm |
|
Maximum input power |
4kw |
|
Input voltage |
Alternating current 380V 50HZ, three phases and five lines |
|
PLC |
Siemens S7-200 (with high-speed terminals), PLC CPU 224 |
|
Servo motor |
Taiwan Dongyuan, p=750W |
|
Display |
touch color screen |
|
Pump motor |
2.0 kw |
|
Hydraulic oil brand |
# 46 antiwear machine oil, |
|
Mold lubricating oil |
250# gear oil |
|
Hydraulic oil cylinder |
Bore 80mm |
|
Atmospheric pressure |
0.4mpa |
|
Thickness of galvanized steel strip coil |
0.4mm |
|
Width of galvanized steel strip coil |
50mm~55mm(Depending on the machine type) |
|
Diameter of galvanized steel strip coil |
Inside coil diameter:508mm,Outside coil diameter: less than 1100 mm |
3.Performance features:
