Section Shape: | Round |
---|---|
Outer Diameter: | 800-1000 mm |
Thickness: | 3-8 mm |
Grade: | 10#-45# |
Grade: | 20# |
Standard: | API |
Standard: | API 5CT |
Outer Diameter: | 112 |
Quick Details
Specifications

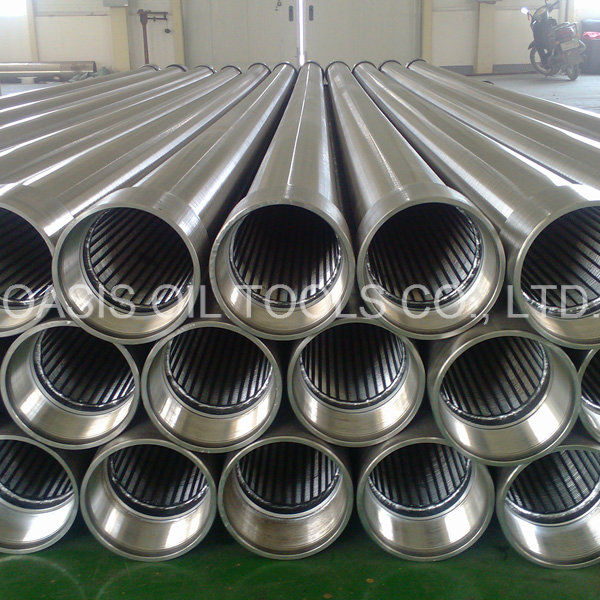

Water well screensAre manufactured by a v or wedge shaped wire around
An internal array of longitudinal support rods. the world advanced
All-weld technology is used with each intersecting point of these wire
Fusion welded,which creates the robust construction and excellent
Mechanical performance. The v or wedge shaped profile wire wraps around
The support rods over the full length of the screen creating a
Continuous slot opening, hence the screen allows water(oil) to enter
Your well freely in ample quantities, while at the same time keeps the
Majority of sand and gravel out of the well. The slots can be changed
According to different strata.
Slot Size (mm): 0.10, 0.15, 0.2,0.25, 0.30-3 or as per customers' requirement
Material: carbon steel, stainless steel (304, 316L etc.)
Unit length up to 6m.
Diameterfrom 25mm to 1200mm
Open areaup to 60%
End Connection: beveled or thread coupling
