| Talk Range: | 10-13km |
|---|---|
| Storage Channel: | 256 channel |
| Frequency Range: | 136-174MHz 400-480MHz |
| Dimensions: | 118*58*35mm |
| Type: | Handheld |
| Model Number: | I-9D |
| Brand Name: | iradio/OEM/ODM |
| Place of Origin: | China (Mainland) |
| Output power: | 10W |
| Battery capacity: | 2800 li-polymer |
| Flashlight: | yes |
| Privacy code: | yes |
Quick Details
Specifications

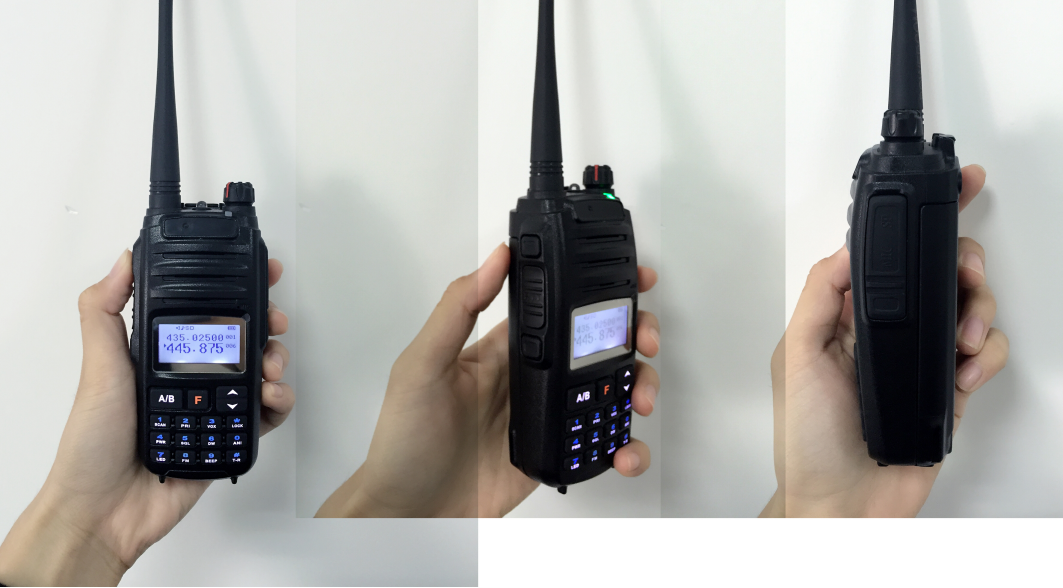

I-9D
Features:
Dual display/dual standby QT/DQT ANI coded VOX function FM radio Wide/narrow band selective 256 memorial channel/25 memorial radio station PC programmable TOT function Flashlight function CTCSS/DCS Silent Code 1750 relay signalling(Optional) CTCSS/DCS Scan Function Squelch Level Setting Emergency Alarm Function Battery Save Function Weight:281g Size:118*58*35mm(without antenna)
Technical details:
VHF:136MHz - 174MHz ;UHF:400MHz - 480MHz Working voltage: 7.4V DC±15 % Working temperature:-10℃ ~ +40℃ Channel storage:128*2 channels Frequency Stability: ±2.5ppm Antenna Impedence: 50 Ω Channel spacing:12.5KHz/25KHz Modulation Type:F3E Maximum Frequency Deviation: ≤± 5KHz(W),＜2.5KHz(N) RF Modulation Sensitivity Modulation distortion:＜5% Receiving Sensitivity: ＜0.18 μ V(12dB SINAD Audio Power: 1 W Audio distortion:≤7% Audio response:3dB Standy current:≤30mA Battery Capacity:2800mAh Receiving Sensitivity:0.13 μ V(12dB SINAD)
More detail:
Package:
by carton(tell us the ways you wanna pack)
Support DHL/Fedex/Express(tell us the ways you wanna ship)
