| Talk Range: | 5-8km |
|---|---|
| Storage Channel: | 16*2 |
| Frequency Range: | 136-174MHz 400-470MHz |
| Dimensions: | 140*63*33mm |
| Type: | Handheld |
| Model Number: | CP-1000 |
| Brand Name: | iradio/OEM/ODM |
| Place of Origin: | China (Mainland) |
| Battery capacity: | 1500mAh |
| 1750hz: | yes |
| Scramble: | yes |
| Waterproof: | yes |
Quick Details
Specifications
CP-1000

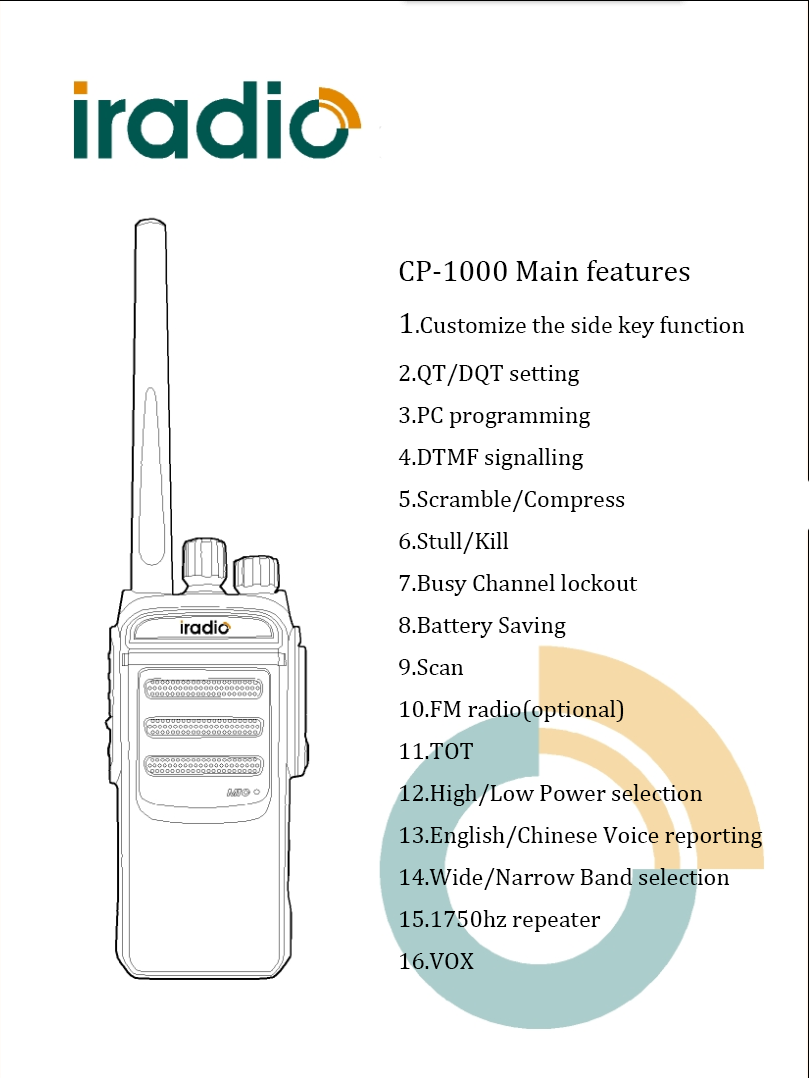

Features:
16 Channels IP56 Dustproof&waterproof DTMF CTCSS/DCS Scramber/compandor Stun/kill function Busy Channel Lockout VOX Function Intelligent power saving Scan Function TOT function Chinese/English voice prompt High/Low Power Selection Wide/narrow band selectable 1750Hz RELAY Side key function can be defined FM radio(Optional) Weight:294g (battery&antenna incouded) Size:140mm*63mm*33mm (battery&antenna incouded)
Technical details:
Frequency range:136~174MHz 400~470MHz Working voltage:7.4V DC Channel storage:16*2 channel(zone1/zone2) Working temperature: -30℃ - +60℃ Frequency stability:±2.5ppm Battery capacity:1500mAh Transmitting power:high power: 6W low power: 2W Transmitting current:H ≤ 1.5A L ≤ 1A Modulation mode: F3E Maximum frequency deviation: : ≤ 5KHz(25KHz) ; ≤ 2.5KHz(12.5KHz) Modulation distortion: ≤ 5% Adjacent channel power: : ≥ 65dB(25KHz) ; ≥60dB(12.5KHz) Digital protocol:ETSI-TS 102 658 Acceptance sensitivity: (12dB SINAD): -122dBm Audio output power: ≤ 1W Audio distortion: ≤ 7％ Adjacent channel power: 60dB(12.5KHz) Intermoduolation: ≥60dB
More detail:
Package:
by carton(tell us the ways you wanna pack)
Support DHL/Fedex/Express(tell us the ways you wanna ship)
