1.Brief Introduction:

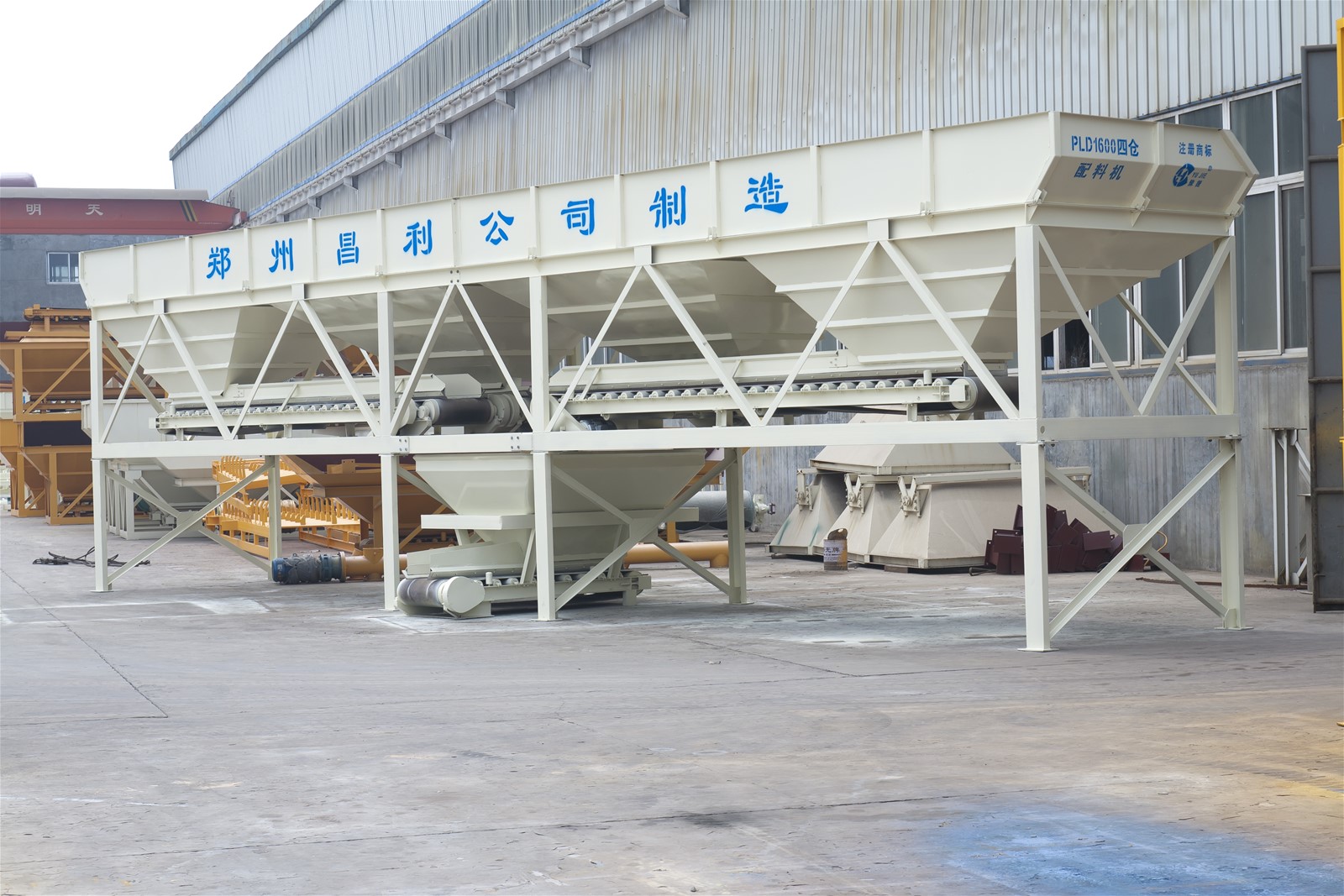

Pneumatic separate weighing batching machine has PLD1600, PLD2400, PLD3200, PLD4800, etc models. the hopper volume can be customized by user demands.

Pneumatic separate weighing batching machine is composed of storage hopper, weighing hopper, level conveying belt. Each storage hopper has one weighing hopper.  Aggregates are discharged from storage hopper into weighing hopper by air cylinder and are discharged again to level conveying belt via discharge door controlled by air cylinder after weighing. In discharging process of weighing hopper, it can deduct and replenish aggregates to achieve more accurate weighing.

Pneumatic separate weighing batching machine is with best stability and weighing accuracy in common batching machines, so the concrete batching plants with high demands on weighing accuracy all use this kind of batching machine.



2.Techincal parameters:

Model	PLD1600-3	PLD1600-4	PLD2400-3	PLD2400-4	PLD3200-4	PLD4800-4
NumberOfWEighingHopper	3	4	3	4	4	4
CapacityOfSTorageHopper	6m3x3	6m3x4	10.5m3x3	10.5m3x4	16.6m3x3	22.5m3x3
Productivity	80m3/h	80m3/h	120m3/h	120m3/h	160m3/h	220m3/h
Mixing Accuracy	±2%	±2%	±2%	±2%	±2%	±2%
NumberOfBAtchingTypes	3	4	3	4	4	4
FeedingHeight	2800mm	2800mm	3320mm	3320mm	3380mm	3380mm
Power	12kw	15kw	11kw	15kw	15kw	18.5kw
CompleteWeight	6700kg	7800kg	9500kg	10800kg	14400kg	16000kg
Overall Dimension	10000x2100x3300mm	13200x2100x3300mm	10200x2300x3800mm	13520x2300x3800mm	14400x2400x4300mm	15000x2500x4500mm

Any change of technical data shall not be advised additionally.

3.Performance features:
1. High weighing accuracy and precision;
2. High efficiency and productivity;
3. Compact and durable structure;
4. Durable wear parts and long lifetime.
