| Model Number: | Vs.V8531 |
|---|---|
| Brand Name: | VideoScape |
| Place of Origin: | China (Mainland) |
| SINGLE/DUAL LVDS: | SUPPORT |
| SCREEN SIZE: | 24-65inch |
| Board Type: | LCD &LED monitor |
| Resolution: | Max support: 2560*1600 @60Hz |
| Standby Consumption: | 0.25W |
| Speaker out: | 2W*2 |
Quick Details
Specifications
Features
CHIPSET |
RTD2785R | |||
BOARD TYPE |
LCD Monitor Main Board | |||
PANEL |
Panel Type |
LCD TFT | ||
Max Resolution |
up to 2560*1600 60HZ | |||
Interface |
4 ch LVDS | |||
VIDEO INPUT |
DVI |
up to 2560*1600 @60Hz | ||
HDMI |
up to 2560*1600 @60Hz | |||
DP |
up to 2560*1600 @60Hz | |||
VGA |
Format |
up to 2560*1600 60Hz | ||
Line frequency |
30~99KHz | |||
Field |
56~75Hz | |||
Interface |
D-SUB15 | |||
AUDIO INPUT |
VGA/Audio |
L/R Audio Input | ||
AUDIO OUPUT |
Max Output Power |
2*2W(4Ω) *2/1.6W(8Ω)*2 | ||
POWER |
DC Input |
12V | ||
Panel Voltage |
5V/12V/10V | |||
Standby Consumption |
< 0.25W | |||
OSD LANGUAGE |
Chinese, English, Korean, etc. | |||
KEY FUNCTION |
POWER, MINUS, PLUS, MENU, EXIT, up(Optional), DOWN(Optional) | |||

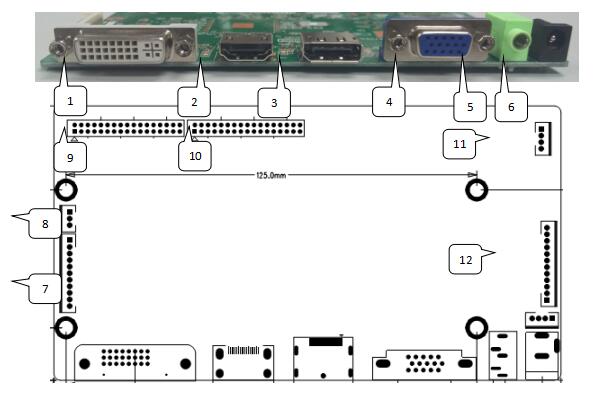

No |
Function Descriptor |
No |
Function Descriptor |
1 |
DVI Input |
7 |
Keyboard Connector |
2 |
HDMI Input |
8 |
IR Connector |
3 |
DP Input |
9 |
Panel LVDS Connector |
4 |
VGA Input |
10 |
Panel LVDS Connector |
5 |
Audio Input |
11 |
Speaker Connector |
6 |
12V DC Input |
12 |
Backlight Control Connector |
Our Workshop showing:
Packing details as below:
Welcome to buy the low price high quality with best price monitor board for HD panel support dvi and dp input made in China from VIDEOSCAPE. We are one of the leading manufacturers and suppliers in China, with many products in stock. Now, check the quotation with us.
