| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 12 Months |
| Certification: | ISO, CE, BV, SGS |
| Weight: | 36T |
| Dimension(L*W*H): | As request |
| Power(W): | 2*30000 |
| Model Number: | HZS75 |
| Brand Name: | YUJIE |
| Place of Origin: | China (Mainland) |
| Power Type: | Electric |
| Condition: | New |
| Concrete Mixer: | JS1500 |
| Batching Machine: | PLD2400 |
| Feeding volume: | 2400L |
| Discharging volume: | 1500L |
| Feeding method: | Hopper |
| Discharging height: | 3800mm |
| Weighing accuracy: | 2% |
| Aggregate silo: | 9m3 |
| Weighing hopper: | 2400L |
| Color: | Customer request |
Quick Details
Specifications

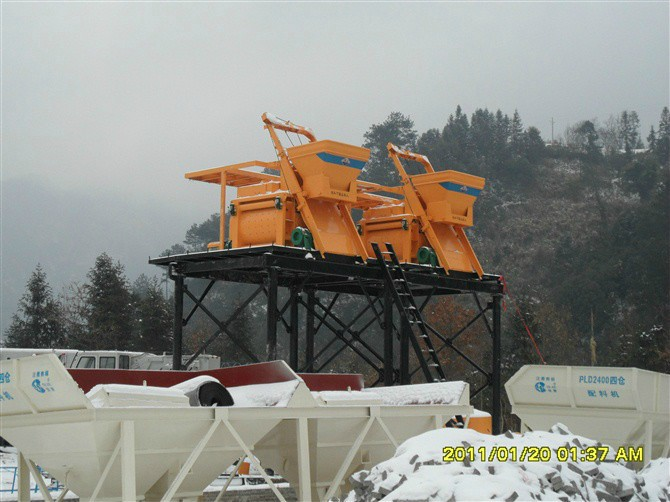

High Productivity Engineering Batching Plant with Lifelong Service
1. Brief Introduction:
this series of engineering batching plant adopts modular structure, It is specially designed for customers who need to change the construction site frequently. It is simple in installation, compact in structure, place saving and high automation. It is mainly used for bridge, building, water conservancy project, power and other infrastructure projects.
2.Techincal parameters:
Model |
HZS25 |
HZS35 |
HZS50 |
HZS75 |
HZS100 |
Capacity |
25m3/h |
35m3/h |
50m3/h |
75m3/h |
100m3/h |
Mixer Model |
JS500 |
JS750 |
JS1000 |
JS1500 |
JS2000 |
Mixer Power |
18.5Kw |
30Kw |
37Kw |
2*30Kw |
2*37Kw |
Discharge Height |
3800mm | ||||
Discharge Volume |
500L |
750L |
1000L |
1500L |
2000L |
Charging Volume |
800L |
1200L |
1600L |
2400L |
3200L |
Mixing Cycle |
60S | ||||
Max. Aggregate Size |
80/60mm | ||||
Concrete Batching Machine |
PLD800 |
PLD1200 |
PLD1600 |
PLD2400 |
PLD3200 |
No. of Storage Hopper |
2/3/4 |
2/3/4 |
2/3/4 |
3/4 |
3/4 |
Aggregate Silo Capacity |
2.5m3 |
2.5m3 |
4.5m3 |
9m3 |
12m3 |
Weighing Hopper Volume |
800L |
1200L |
1600L |
2400L |
3200L |
Agg. Weighing Accuracy |
1000Kg±2% |
1500Kg±2% |
2000Kg±2% |
3000Kg±2% |
4000Kg±2% |
Water Weighing Accuracy |
300Kg±1% |
300Kg±1% |
300Kg±1% |
400Kg±1% |
500Kg±1% |
Cement Weighing Accuracy |
500Kg±1% |
500Kg±1% |
500Kg±1% |
500Kg±1% |
700Kg±1% |
Agg. Weighing Accuracy |
50Kg±1% |
50Kg±1% |
50Kg±1% |
50Kg±1% |
70Kg±1% |
Control System |
Fully automatic/Manual(One machine double control) | ||||
3. Performance features:
1. Less funds possession
2. Less space occupation
3. Less equipment application
4. Accurate measurement of batching machine
5. High quality concrete producing.
