the following example is for you reference.


1.Brief Introduction:

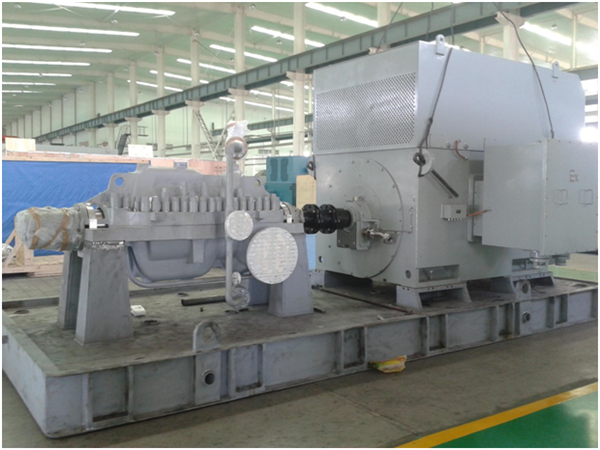

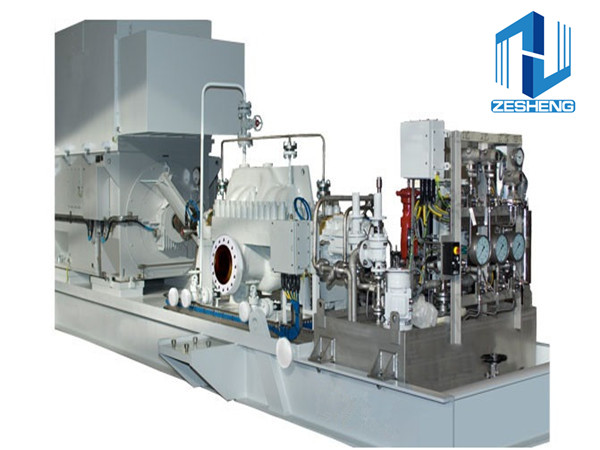

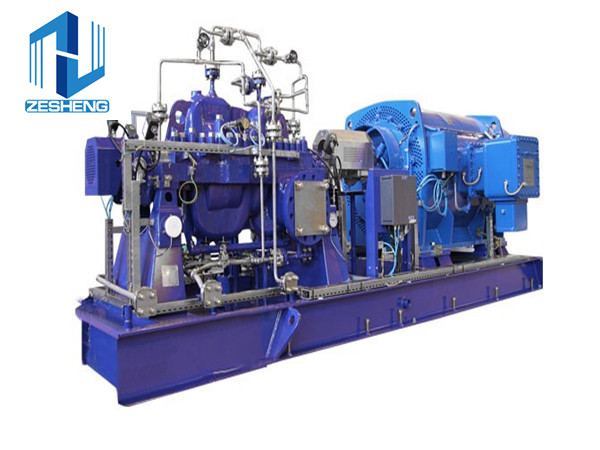

Axially split, horizontal multistage centrifugal pump

near-centerline mounted

Diffuser casing

Single suction, enclosed impeller Thrust compensation by opposed impeller groups

Side-Side nozzle arrangement Materials of construction per API 610, other materials on request



2.Techincal parameters:



Heavy duty process design according to API 610 latest edition (BB3 type)

Ring oil lubrication, other methods of lubrication available

Replaceable wear rings for casing and impeller Fan and water cooling available

OPERATING LIMITS

Capacity 50 to 3,000 m3 /h

Head 200 to 3,000 m

Discharge flange size 3 to 14 in Max. Pressure 35Mpa

Temperature up to 205°C



3.Performance features:

Oil fields and terminals

Crude oil and oil product pipelines Water pipelines

Fluid injection

High pressure services

Power plants
