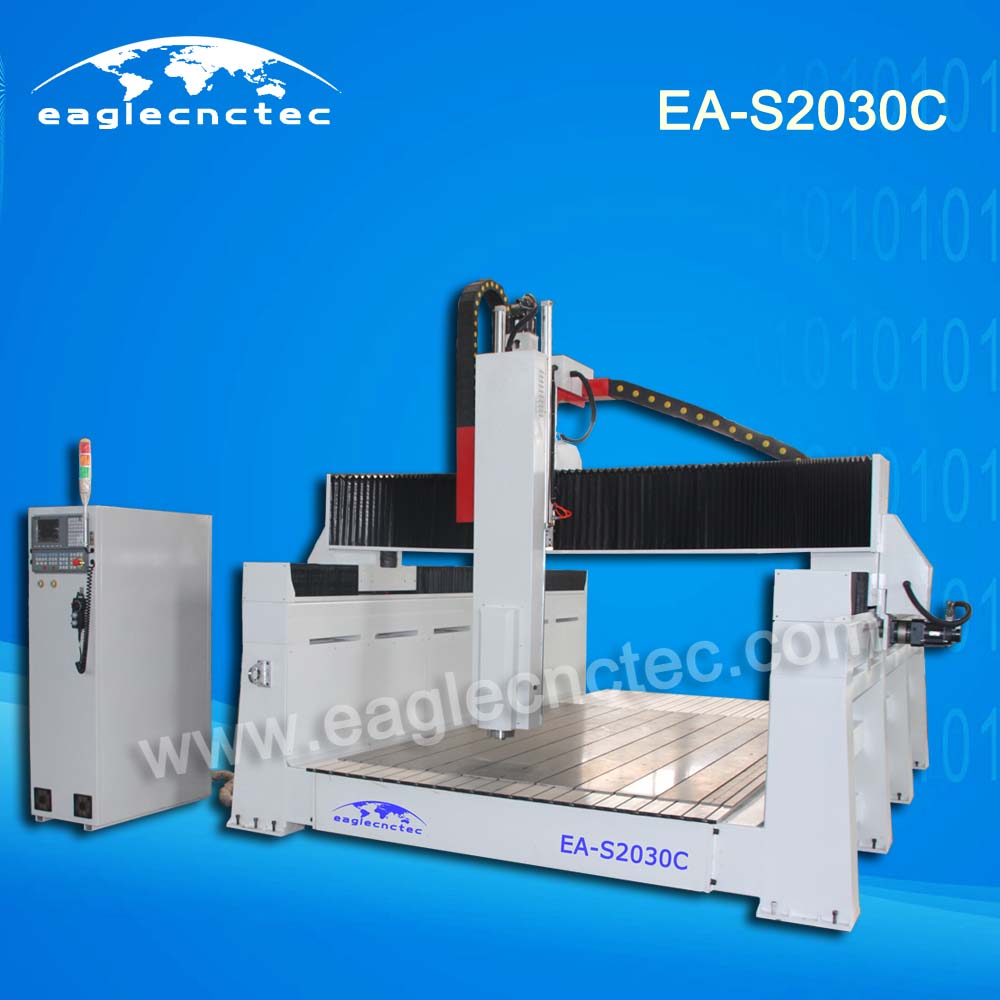

Applicable Materials

Styrofoam, Foam, PS, EPS, HDPE, Solid Wood, Epoxy Tooling board

Application

Casting Industry

Homepage:

Technical Parameter

XYZ Working Size: 2000x3000x800mm

Table Type: Aluminum T-slot

Spindle: 7.5kw ATC spindle, BT40 tool Holder, spindle speed range 6000-12000 rpm/ min

Diameter Range of Cutter: 3.175-32mm

Drive System: YASKAWA AC servo motor and Servo pack, XY 1.8kw, Z 1.3kw with brake

Linear Guide: Origin Taiwan HIWIN 30mm square rails

Transmission: France Motovario reducer for all axes; X and Y axes adopt hardened helical rack and Pinion transmission; Z axis 32mm ball screw.

Controller: Taiwan Syntec, separate keyboard and Color LCD screen
