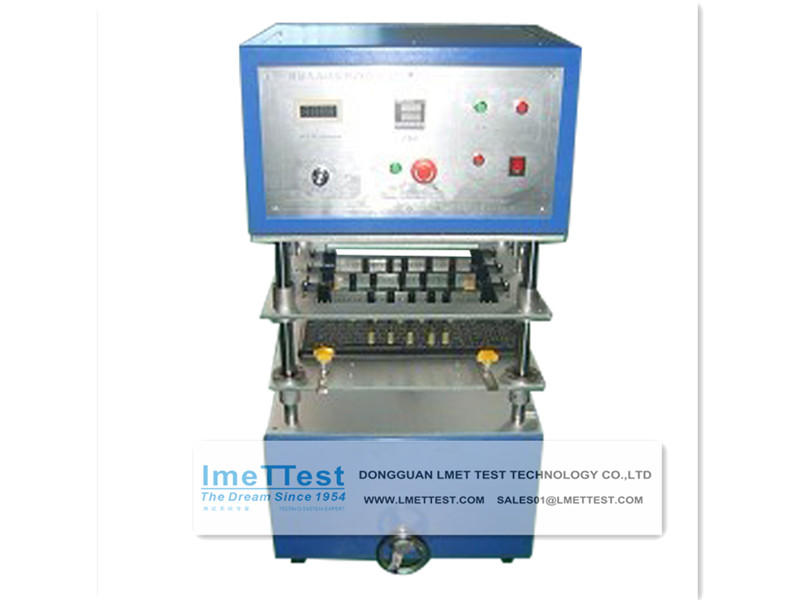

KEYBOARD BUTTON LIFE TESTER

GENERAL INTRODUCTION---KEYBOARD BUTTON LIFE TESTER

this Button Life Tester is a professional button and key life testing device to simulate human clicking or beating to verify service life,
Endurance as well as reliability of keys on keyboards, button on switches and key for electronic & electrical products.

Available to implement Simultaneous multiple-button life test & multiple-contact test for one product

as per keyboard, 16 keys can be available for simultaneous test.

Finished keyboard testing:Max. 16 testing head beating the button, high efficiency, meet the  quick testing requirements. Testing
Velocity continuous & controllable, maximumly 200 cycles per min;Real-time display the testing velocity, improve the testing accuracy;
Beating force also continuous and controllable,wider testing range. All components with famous brand, quality reliable, long service
Life.

TECHNICAL PARAMETERS---KEYBOARD BUTTON LIFE TESTER

Tester Name	Keyboard Button Life Tester
Tester Model	LT-8670A
Testing Bench Travel	0-100mm
Counter Setting Range	1-99999999 times    controllable
Test Velocity	60-200times  per min    controllable
Test Force	125
Air Source	More than 0.6MPa
Dimension	W550D450H950mm
Weight	100kg
Power Source	AC220V,50Hz 5A or as Required
