| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 18 months |
| Certification: | CE |
| Brand Name: | EagleTec |
| Condition: | New |
| Weight: | 1350KGS |
| Voltage: | 380V |

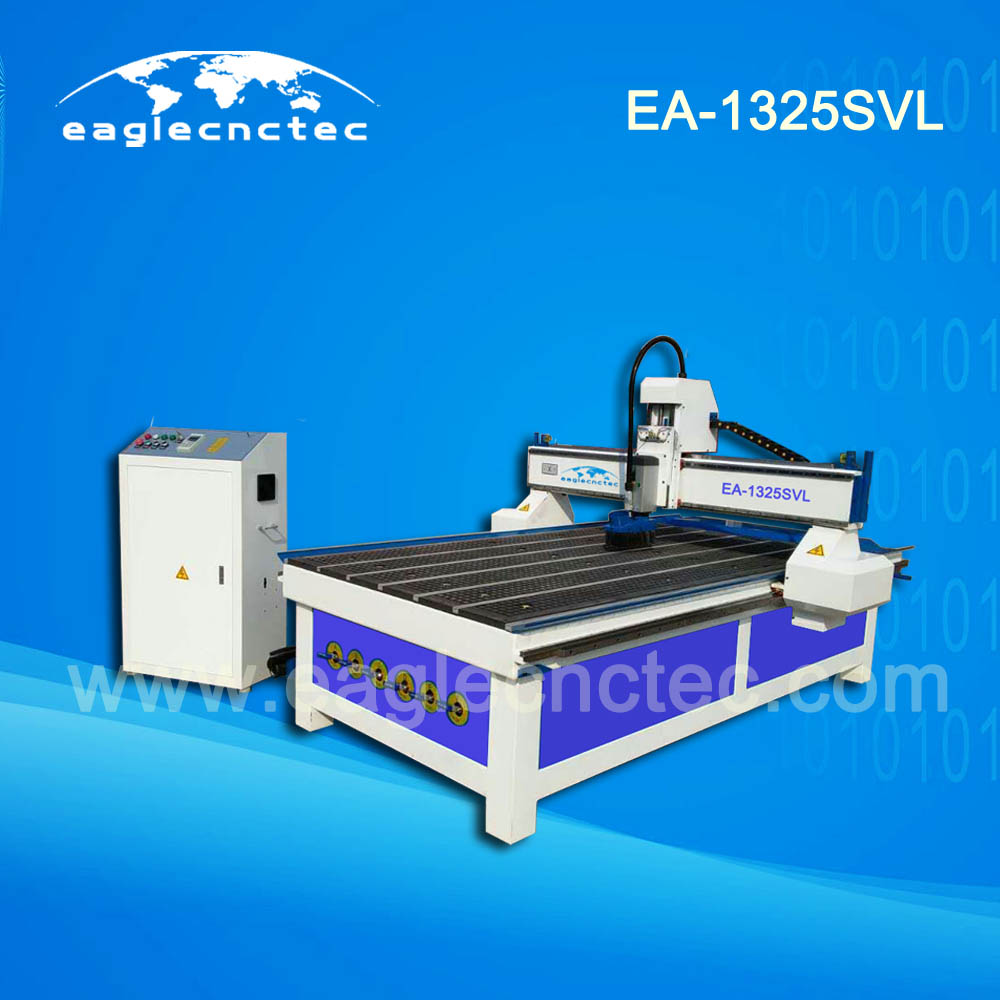

| Model Number: | EA-1325SVL |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |
| Working Area: | 1300x2500mm |
Quick Details
Specifications
Application
Material good for CNC router 4x8 is solid
Wood, MDF, plastic, PVC, acrylic, and other
Nonmetal materials.
Technical Parameter
XY Working Size | 4'x8'
Feeding Height | 200mm
Machining Precision | 0.1mm / 100mm
Max. Idle Running Speed | 35,000/min
Max. Routing Speed | 20,000mm/min
Drive Motor | Big torque stepping
Spindle | Air cooling 3.0kw, origin HSD from Italy, variable speed 0-18,000RPM
Controller | DSP A11 or NK105G2
Working Table | PVC vacuum with T-slot
Vacuum Pump | Water-ring, 5.5kw, 230CBM/h air flow
XY Transmission | Helical rack and pinion
Z Transmission | Rolling balls crew
XYZ Linear | HIWIN rail, origin from Taiwan
Working Power | AC380V/50-60Hz, 3 Phase 4 Wires
Max. Power Consumption | 12KW
Net Weight | 1350KGS
