Quick Details

Type: IPL
Feature: Hair Removal,Skin Rejuvenation,
Model Number: NBW-I323
Brand Name: NUBWAY
Place of Origin: China (Mainland)
Certification: CE, ISO, ROHS, FDA
Feature: Acne Treatment, Blood Vesse

Specifications


Three handles IPL machine

(NBW-I323)


  • Product description

the structure is shown above: touch screen, emergency stop, key switch, treatment handles etc.

Three Handles IPL MachineNBWI323


  • System Introduction


      Name: Intense pulse hair removal machine, skin rejuvenation, vascular removal,spot, skin Whitening, hair removal etc.

      the treatment theory is the selective absorption effect.

      the system is controlled by MCU. It is composed of mainframe, touch screen, handles.

      Operation and controlling part is in the mainframe. the controller in it can monitor the machine comtinuously.

      Controlling system:TFT touch screen, key switch and emergency stop etc

      Power source:Supply the voltage(the core part of the machine)

      Waterway:Help the treatment handle cooling

      Power warehouse:Store and release voltage

      Screen:Display and adjust working mode and parameter

      Treatment handle:Xenon, crystal, switch and transfer tools


  • Operation Introduction
  1.    Surplus for limbs all over the body such as the torso armpit hair removal
  2.    Changes of aging skin
  3.    the treatment of pigment pathological changes

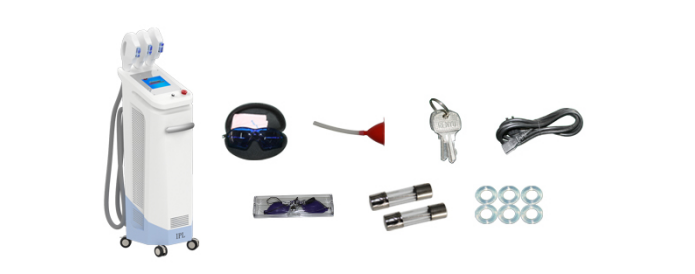

  • EQuipment lists
Three Handles IPL MachineNBWI323
  • MAinframe (1)
  • Hr treatment handle (1)
  • SR treatment handle (1)
  • VR treatment handle (1)
  • Switch key (2)
  • Protective glasses(1)
  • Power cord (1)
  • Rubber ring (4)
  • Spare fuse (2)
  • Package box (1)
  • Water funnel (1)
  • Technical specifications

this system has multi-pulse and multi-wavelength, its technical specifications is:


Laser Type

Intense Pulse light

Wavelength

560-1200 nm,690-1200nm,420-1200nm

Output mode

Pulsed

Control mode

Touch

Transmission

Crystal light system

Safety class

Class I type B

Screen size

8.0 inch

Energy Density

10-60J/cm2  (≤±2％)

Pulse width

1-30ms

Spot size

8*34mm(SR/VR) 16*57(HR)  (≤0.2mm)

Repetition Rate

≤1P/3S

Crystal temperature

0-30℃

Cooling system

Semi-conductor+water+Air

Dimension

50*40*121cm

Net weight

about 47kg

Fuse

?5×2015A

Input power

1800W

Power supply

AC220V±10% 15A 50-60HZ,110v±10%25A50-60HZ



  • Relevant Requirements



  • Running environment of this system:


      Environmental temperature:10℃~30℃

      Relative humidity: no more than 80%


  • Storage environment of this system:


      Environmental temperature:0℃~40℃

      Relative humidity: no more than 80%
