| Type: | Laser |
|---|---|
| Feature: | Skin Rejuvenation, |
| Model Number: | NBW-FII |
| Place of Origin: | China (Mainland) |
| Certification: | CE, ISO, ROHS, FDA |
| Style: | Stationary |
| Laser Type: | CO2 Laser |
| Function: | Skin Resurfacing, skin rejuven |
Quick Details
Specifications

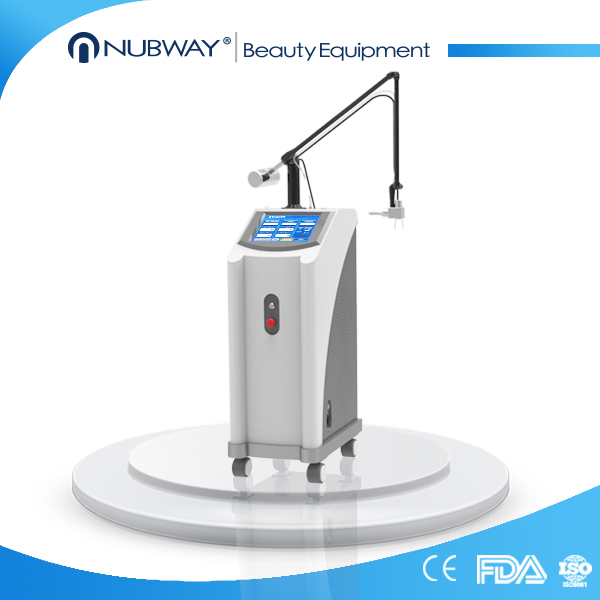

RF Pipe Fractional CO2 Laser (NBW-FII)
- the main structure of the product
NBW-F1I CO2 laser is mainly composed of laser, light guiding arm, laser power supply, cooling system, light arm, touch control panel, etc.
1. Touch control panel: as the exchange interface between personnel and equipment, it is used to display working state and adjust parameters.
2. Light guiding arm:It is made of seven joint optical transmission parts and is used together with laser base; It is used to transmit laser to the suffering area of patients by operators.
3. Laser: It cooperates with laser power supply to produce certain wavelength's laser that we need.
4. Laser power supply: It produces the Working voltage that the laser needs.
5. Cooling system: It is used to cool the laser, to ensure the regular work of laser.
- Main technical parameters
the type of laser: American Coherent CO2 laser
Wavelength of laser: 10600nm
Power: 40W
Work mode of laser: continuous
the output mode after cont the system: Ultra pulsed, single, and fractional
Lattice work mode: intermittent load and continuous operation
Speckle pattern: single mode
the diameter of scorch batch: 100 um um - 2000 (decided by the zoom lens barrel)
the width of Pulse: 1 ms - 100 ms
Output graphics: triangle/square/rectangle/hex/circle/line, updated DIY graphics
the power of aiming light:≤5mw
Light guiding system: Seven joint light guiding arms
the wavelength of aiming light: 650 nm
the number of scorch batch: (square), 625 (25×25)
Stripping ratio: (lattice pattern). (1% - 100%)
the area of graphics: 0.1 mm to 0.1 cm - 20 mm to 20 mm
Scanning mode: sequence, MID-split, Out-of-order fractional scanning
the interval between pulses: 1 ms - 100 - ms step 1 ms
Operating voltage: AC 220V±10%, 50Hz AC 110V±10%, 60Hz
Cooling system: air cooling and water cooling
the insurance specifications: Max10A
Input power: 1000 w
Weight: 45 kg

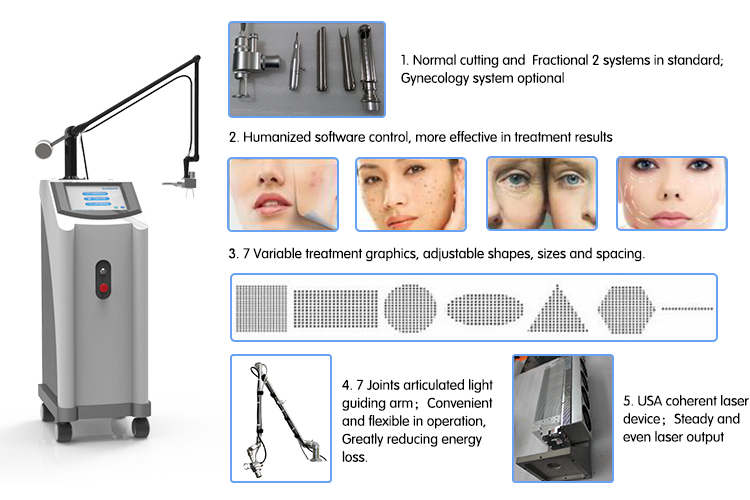

- Product advantages
- Product Configuration List
Configuration |
|
Host |
one |
LAser guiding joint arm |
one |
Pedal switch |
one |
POwer cord |
one |
Operating Instruction manual |
one |
WArranty card |
one(included) |
LAser protective eye-wear |
one |
COmmonProtective eye-wear |
one |
UNlocking key of power |
one |
