| Type: | Noise and Attenuation |
|---|---|
| Brand Name: | DEC |
| Certification: | ISO9001:2015 |
| Size: | 52mm-610mm |
| color: | Black white gery |
| Model Number: | DEC-XIAA/CXIA |
| Place of Origin: | China (Mainland) |
| Temperature range: | -30 to +150 |
| Operating pressure: | Max.3000 Pa |
| Standard length: | 10M |
Quick Details
Specifications
Feature:
DEC-CXIA series is an insulated acoustic air Duct, manufactured by using a dead soft aluminum strip which is Perforated, spirally wound and mechanically joined together.
the inner perforated duct is wrapped with a Thick fiberglass insulation and covered by a flame retardant, non-toxic Polyethylene vapour barrier.
this top-rated product uses a perforated Core with an open area of 20% to 25% to completely cushion sounds such as air Movement and duct vibrations.
Full range of flexible acoustic thermal
Insulated ducting for preventing condensation and reducing noise when there's
Temperature difference in airflow of ventilation system.
1.Helpful for reducing heat&cool loss and preventing Condensation
2.Insulation: standard 16kg/m3 quality insulation glass wool and 24kg/m3,32 kg/m3 glass wool is also available.
3.Perforated aluminum/polyester lamination for reducing noise.
Packing: individual 120cm long carton packing & individual PE bag Packing
Helps control sound generated by HVAC
Available up to R-8 thermal value
Installation:
Usage:

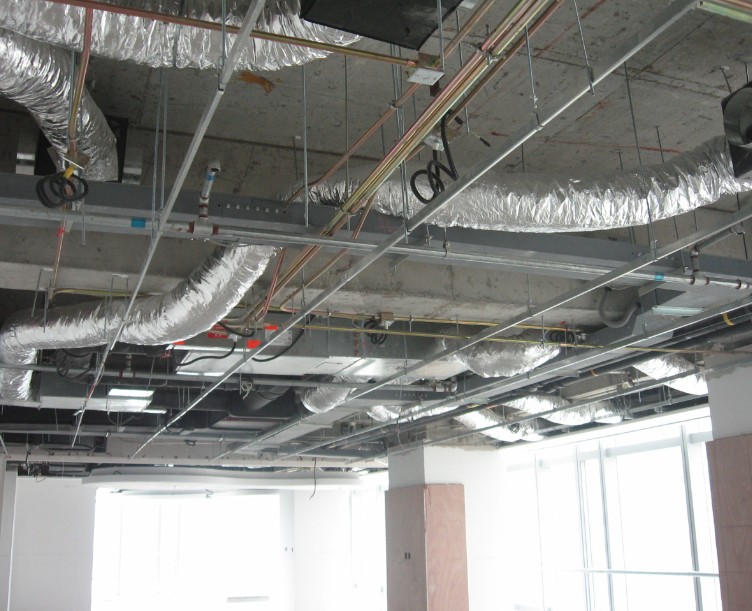

HVAC SYSTEM and AIR CONDITION SYSTEM
1.Temperature range: -30 to +150
2.Operating pressure: Max.3000 PA
3.Opearting air velocity: Max 30m/s
4.Bending radius: Min 0.54*D+25mm
5.Diameter range: 52mm-610mm
6.Standard length: 10m
7.Reaction to fire: Difficult to ignite
8.Packing: Single cardboard box
Company Information:
DEC Mach Elec&Equip (Beijing) Co.,Ltd.(" Dec Beijing" ) is an exclusively foreign-owned enterprise formed by Holland Environment Group Company (" DEC Group" ) in 1996 and with an Amount of RMB ten million and five hundred thousand of registered capital.
DEC Group, one of the largest Manufacturers of flexible duct in the world, is a transnational corporation Specializing in manufacture of various kinds of ventilation ducts. Its products of flexible ventilation duct have passed quality certification tests in more Than 20 countries such as American UL181 and British BS476.
by using a full set of automated Production line of DEC Group and its product specifications and manufacturing Techniques, DEC Beijing, manufacture nine major species ventilation flexible Ducts, such as Aluminum foil duct,Combined PVC and AL foil duct,Insulated duct and acoustical and thermal ducts applying for Ventilating and exhausting systems in high, medium or low pressures, or Erosive, high-temperature, heat-insulation environments.
Annual output of flexible ducts of DEC Beijing is five hundred thousand(500,000)ms, amounting to circle more than ten Times of the circumference of the earth. for more than ten years of development In Asia, now Dec Beijing focus on supplying high quality flexible ducts to a Variety of industries such as building, nuclear energy, military, electron, Space transportation, machinery, agriculture, steel refinery in China or Overseas market.
Wherever there is gas transportation, There will appear our products. Dec Beijing have already become one of the Leaders in domestic construction ventilating and industrial flexible ducts.
FAQ:
Are you factory or
Trade company?
We are factory founded in 1996.
Could i be your agent?
Yes,agent can accept.
