Model: CNC1000

Equipment name: CNC EDM machine for tyre molds

Oil tank size:1350mm*1200mm*350mm

Rotary table size:1000mm

Max load of worktable:3000kg

Z axis travel:150 mm

Y axis travel:500 mm

Rotary table type:mechanical indexing

Linear scale accuracy on Y/Z axes:0.005 mm

Max machining current:100A

Max machining speed:600-1000 mm/min

Low voltage current adjustment:1-28 steps variable

High voltage current adjustment:0-15 steps variable

Pulse width:2-1800 ms variable

Pulse gap:1-1800 ms variable

Spindle speed:1-100 steps variable

Gap voltage:30-60V variable( 50V recommended)

Upward time:1-99 steps variable

Downward time:1-99 steps variable

Max power:15kw

Best surface finish:1.6 μm

Minimum chuck division:0.001°

Maximum equal segments allowed: 250 nos Maximum unequal segments allowed:180 nos Rotary direction:CW/CCW

MPG:equipped (single axis only)

Machine dimension:1800*1800*1600mm

Machine weight:4200kg

MACHINE OVERVIEW

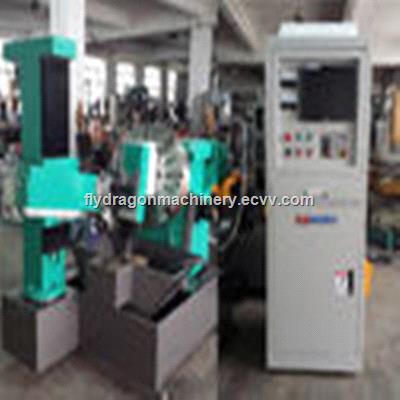

TOPWEDM CNC1000 was designed specially a electro discharging machine for tire molds, the CNC controller is fully realized automatically processing tyre molds, the interface is man-machine dialogue type with LCD display for easy operation. the power is optional with 100/120 amperes,the continuous discharging current is variable,discharging time ranges from 1μs to 1600μs,diapause time ranges from 2μs to 1000μs. the maximum machining current higher than 110A,the best surface finish reach to better than 1.6μm,the minimum electrode loss less than 0.3%. the outer protection of CNC controller is completed,electrical grounding available. the main power output applied TAIWAN made VMOS FET,to ensure the reliable working condition.the servo control used PWM system.
