| After-sales Service Provided: | Overseas service center available |
|---|---|
| Outline Dimension: | 6650*2460*3300 |
| Discharge Way: | self discharge |
| Charging Capacity: | 3cbm |
| Model Number: | EQ5140GJB |
| Brand Name: | dongfeng |
| Place of Origin: | China (Mainland) |
| Condition: | New |
Quick Details
Specifications

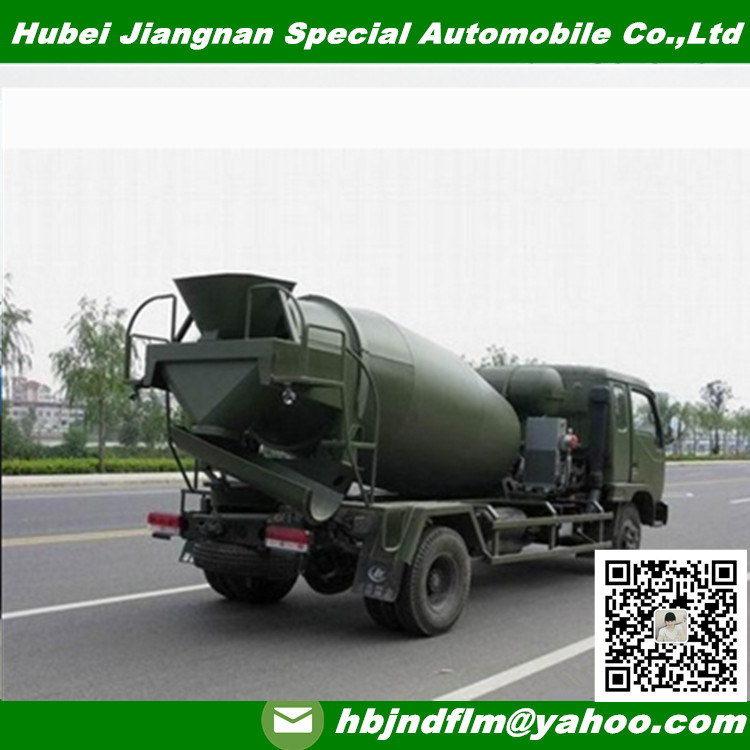

Foton Dongfeng 3cubic small mixer truck manufacturer
Main specifications
Main specifications
Name |
EQ5140GJB Concrete Mixer truck | ||
Max mass(Kg) |
14950 |
Capicity(m3) |
3 |
Rated Loading (Kg) |
8775 |
Outline size(mm) |
6650*2460*3300 |
Curb weight (Kg) |
5980 |
Cabin Seats |
3 |
Approach/depart Angle (°) |
22/20,22/21 |
Front/rear Hang(mm) |
1180/2070,1180/1870 |
axles |
2 |
Wheelbase(mm) |
3600 |
Axle loading(Kg) |
5050/9900 |
Max speed(Km/h) |
90 |
Chassis data | |||
Chassis Model |
EQ1140GLJ |
type |
Lorry type |
brand |
DONGFENG |
Factory |
DONGFENG MOTOR COPORATION |
Outline size(mm) |
6570×2100,2290×2550 |
Tires |
6 |
Approach/depart Angle(°) |
22/17,22/19 |
Tire model |
8.25-20 |
Steel spring |
9/11+8 |
Front track(mm) |
1810,1750 |
Fuel |
Diesel |
Rear track(mm) |
1800,1650 |
Emission Standard |
GB3847-2005,GB17691-2005 EUROIV | ||
Engine model |
Engine Factory |
Displacement(ml) |
Power(Kw) |
YC4D140-45 |
Guangxi Yuchai diesel engine co.,ltd |
4214 |
103 |
