Application

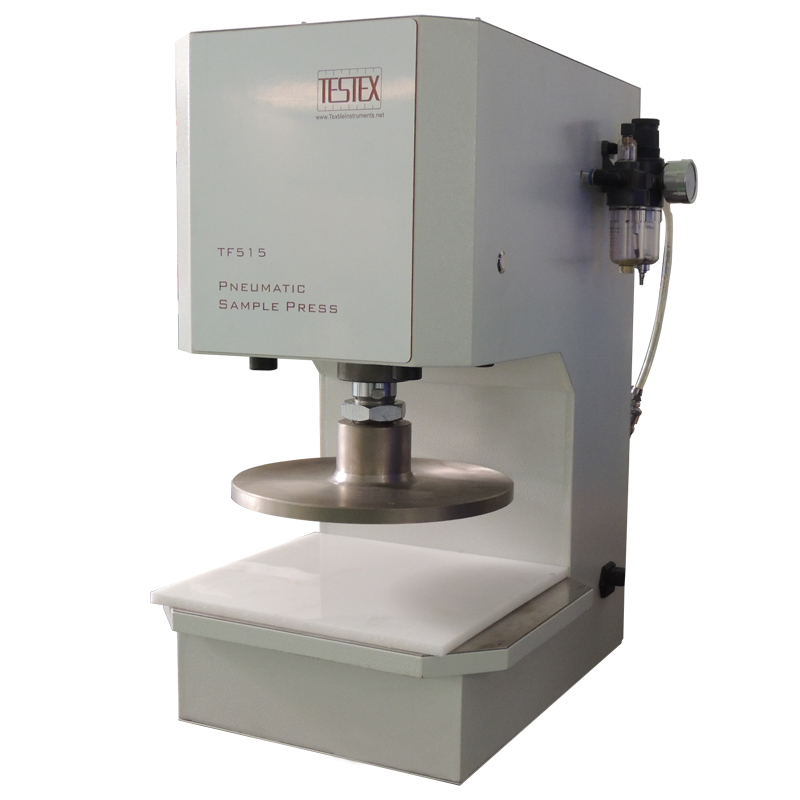

Pneumatic Sample Press, a new type of desktop sample press, to cut samples for testing or other use. Equipped with 125 mm cylinder, Cutting depth of 10mm and 125 x 125mmn tables. under the pressure of 100 psi can produce 800kg/f pressure, equipped with a double bond security operation. Can be requested to provide special shape die. Laboratory standards compression air is required.



the cutting dies can be offered on request with dimensions.

Standards: ISO3801, ASTM D3776/2646, BS 3424/2471, BS EN 12127, M&S P65/65A

Air Source: 0.5-0.7 Mpa

Weight: 40 Kg

Dimensions: 350x350x500mm (LxWxH)
