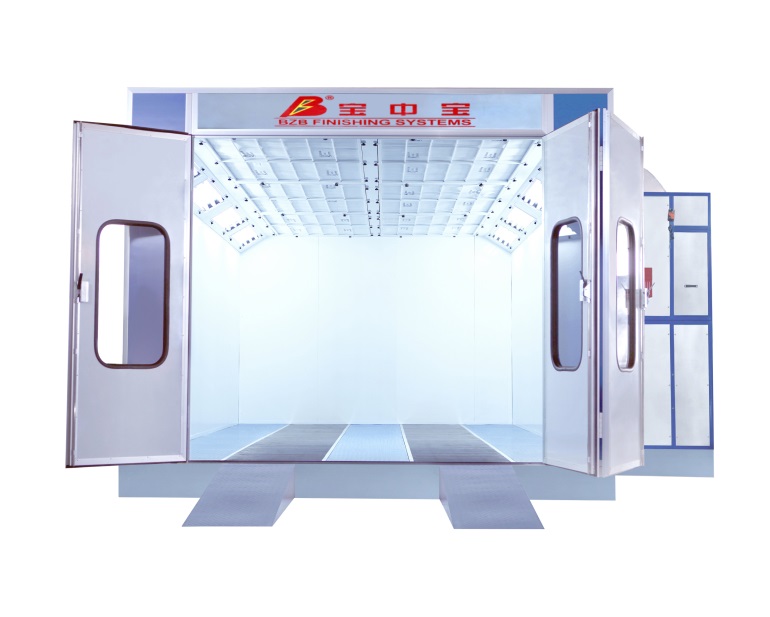

Type: | Spray Booths |
---|---|
Model Number: | 8200 |
Brand Name: | BZB |
Place of Origin: | China (Mainland) |
Certification: | ISO 9000 |
Voltage: | 380v 3P |
Internal Size: | 6900*4000*2650 |
External Size: | 7000*5560*3430 |
Power: | 10kw |
Quick Details
Specifications
Sheet Metal craft main door with device to proof door droop. with 5mm square Tempering glass windows. Aluminum alloy frame for windows.
Wallboards Are 50mm thick EPS panels. Double face is 0.426mm color steel skin. More Better. and EPS density higher than others.
Special Making 5twists reinforce ribs for grid. Gird is made of 30x4mm flat steel. Others ribs are round steel.
Adopt 1.2mm SUS304 stainless steel argon arc welding heat exchanger. Besides, using two Layers. the temperature rising faster.
All light Are Philip brand lamp. with PAK one for two ballast. the light more durable. 4mm tempering light glass.
All power Unit cabinets inside filled by Rock wool protection materials. Double steel Covers. Good heating protection and more save. Cabinets' frames are Aluminum Alloy structures. and cabinets' powder sprayed.
Control Box. most of components are Siemens or Schneider brand.
