| Condition: | New |
|---|
Quick Details
Specifications
Product Description

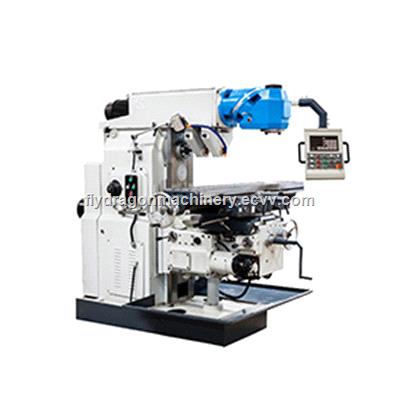

LM1450C Hot Sale Swivel Head Universal Milling Machine
1,Three axes hardened
2,Y and Z axis rectangular guideway
3,Table Swivel 45 degree
4,According to customer requirements can be added ball screw
5,Centralized transmission,value stable,easy to operate
| Table size | mm | 1600X320 |
| Numbers,width distance between T - slot | mm | 3X18X70 |
| Max. Longitudinal travel | mm | 800 |
| Max. Cross travel | mm | 320 |
| Max. Vertical travel | mm | 350-400 the foundation needs special making |
| Travel of arm | mm | 730 |
| Swivel angle of the vertical milling head | Degree | 360 |
| Max. Rotary angle of table | Degree | 45 |
| Distance from vertical spindle to column surface (Min) | mm | 270 |
| Distance from horizontal spindle to RAM bottom | mm | 200 |
| Level spindle taper | Taper | 7:24 NO50 |
| Milling head spindle taper | Taper | 7:24 NO50 |
| Level spindle speed grade | Steps | 18 |
| Level spindle speed range | rpm | 30-1500(50HZ) |
| Milling Head spindle speed grade | Steps | 12 |
| Milling head spindle speed range | rpm | 51-1483(50HZ) |
| Grade of the work-table feeds | Steps | 18 |
| Range of feed speeds longitudinal,cross, vertical | Mm/min | 23.5-1180 8-394 |
| Speed of rapid travels longitudinal, cross, vertical | Mm/min | 2300 770 |
| Milling head spindle drive motor | kw | 4 |
| Level spindle drive motor | kw | 7.5 |
| Feed motor | kw | 1.5 |
| Coolant pump | w | 125 |
| Net weight /Gross weight | kg | 3500/3700 |
| Overall dimensions(L W H) |
