Specifications:

Bench length: ------------------------------5600mm / 6000mm

Bench width: --------------------------------2200mm

Working height: ----------------------------300--1050mm

Post Max. Pulling tension: ----------------95KN (10tons)

Rated voltage: ------------------------------220/380V

Pneumatic pressure range: -------------0.8MPa

Post working range: -----------------------360°

Max. Lifting weight: -----------------------4000kg

Total weight: -------------------------------2700kg

Features:

1. Double cylinder lifting platform can be raised to height of 300—1050mm that is accessible to any accident handing vehicle without cranes. Taking care of mechanics of different heights.

2. the material is flat plate with powerful central controlling system. Remote control: A key in hand, operate freely.

3. Low press cylinder with big cylinder diameter. Resistance to wear with low failure rate.

4. the tower can be rotated 360 degree along the platform which is operated more convenient, more intensity.

5. the clamps are made by high quality steels with forging and heat treatment, which is with high strength, great load and long service lift.

6. the global data synchronization by Mitchell and the major automotive companies to provide and maintain the latest data models.

7. A complete set of clamps and tools considered almost any type of reshaping, which is convenient and flexible.

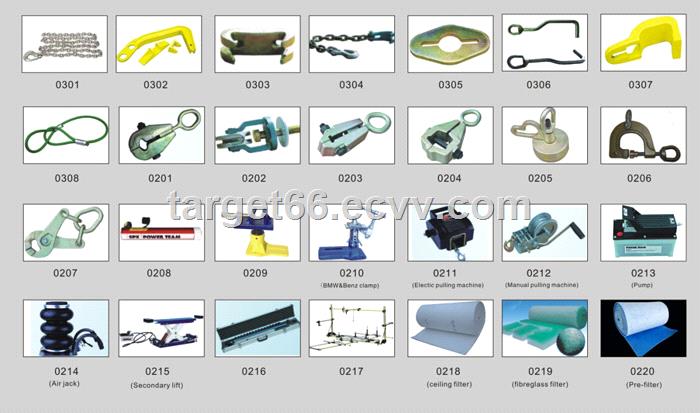

Collision Repair Toolings
