Specification
| Specifications | XQ6226W |
| Max.Vertical milling dia (mm) | 125 |
| Max. Vertical milling cutter dia (mm) | 28 |
| Swivel angle at awivel head(°) | ±360° |
| Table size(mm) | 1270*260 |
| Table travel(mm) | 750*300*430 |
| RAM travel(mm) | 420 |
| Main motor(kw) | 3(V) 3(h) |
| Distance from spindle to table(mm) | 560 |
| Spindle speed Range (r.p.M) | 35-1600 |
| Horizontal spindle speed range | 40-1300 |
| Overall dimensions(mm) | 1655*1500*1730 |
| N.W/G.W (kg) | 1480/1660 |

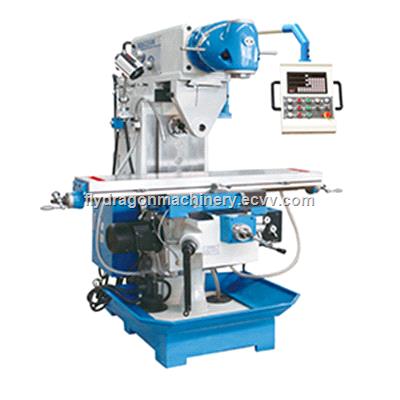

XQ6226B Universal Milling Machine with CE Standard
1. It is a vertical universal milling machine, vertical milling can be processed at any angle of the workpiece, milling head steel-type strong.2. Automatic feeds on X and Y axis, motorized lift on Z axis.
| Specifications | XQ6226B |
| Max. End milling width(mm) | 125 |
| Max. Vertical milling dia(mm) | 25 |
| Spindle to table(mm) | 80-500mm |
| Spindle speed range(r. p. M) | 40-1600r. p. M |
| Head swivel angle | 360° |
| Table size(mm) | 1120× 260 |
| Table travel(mm) | 600× 270 |
| Overall dimensions(mm) | 1655× 1500× 1730 |
| Main motor power(KW) | 2.2 Kw |
| N. W/G. W(Kg) | 1400/1600 Kg |
