| No | Item | Unit | Technical Specification | |
| 1 | Boring diameter | mm | T808A | T809A |
| Φ50-Φ85 | Φ50-Φ95 | |||
| 2 | Max boring depth | mm | 170 | |
| 3 | Spindle speed | R/min | 394 | |
| 4 | Spindle feed | Mm/r | 0.1 | |
| 5 | Spindle quick reset | Mm/min | Manual | |
| 6 | Voltage | V | 220 | 380 |
| 7 | Power | Kw | 0.25 | 0.25 |
| 8 | Motor speed | R/min | 1440 | |
| 9 | Machine weight | Kg | 48+25 | |
| 10 | Overall dimensions | mm | 350x272x725 | |
Product Description

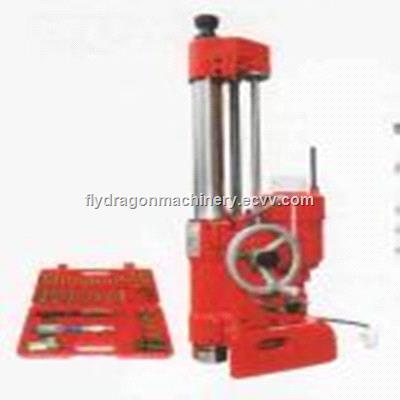

this boring machine is mainly used for reboring engine cylinders of motor cycles, automobiles and middle and small tractors.To conduct the reboring operation, the machine can be set directly onto the cylinder block by aligning its boring bar with the cylinders axis and clamped by means of an anchoring device.
| Parameters | ||||||
| Model | Boring diameter | Max. boring depth | Spindle speed | Spindle feed | Spindle rapid reset | |
| T8014A | Φ65- Φ140 mm | 300 mm | 250;380 r/min | 0.11 mm / r | 636 mm / min | |
| T8016A | Φ 80- Φ 165 mm | 400 mm | 200;300 r/min | 0.12 mm / r | 780 mm / min | |
| Model | Motor Voltage | Power | Speed | Overall dimensions | Packing dimensions | Weight |
| T8014A | 220/380 V | 0.25/0.37 Kw | 1440 r/min | 320×330×850 mm | 540×470×1030 mm | 62 Kgs |
| T8016A | 220/380 V | 0.25/0.37 Kw | 1440 r/min | 360×345×1100 mm | 500×490×1270 mm | 85 Kgs |
