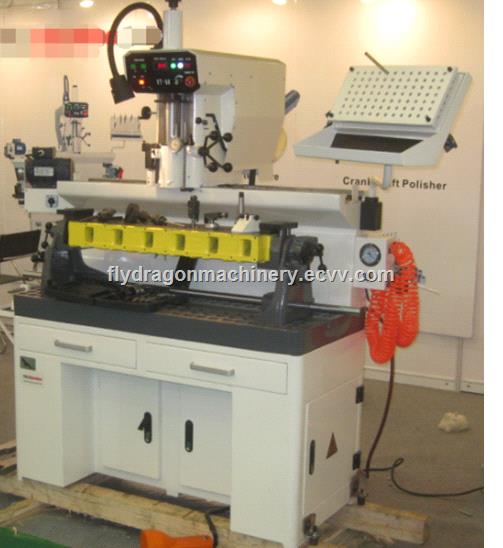

Description(VBS60)

Technical Parameters

Working Table Dimensions (L * W)

1245 * 410 mm

Fixture Body Dimensions (L * W * H)

1245 * 232 * 228 mm

Max. Length of Cylinder Head Clamped

1220 mm

Max. Width of Cylinder Head Clamped

400 mm

Max. Travel of Machine Spindle

175 mm

Swing Angle of Spindle

-12° ~ 12°

Rotating Angle of Cylinder Head Fixture

0 ~ 360°

Conical Hole on Spindle

30°

Spindle Speed (Infinitely Variable Speeds)

50 ~ 380 rpm

Main Motor (Converter Motor)

  SPeed 3000 rpm(Forward andReverse)

 0.75 kW fundamental frequency  50 or 60 Hz

Sharpener Motor

0.18 kW

Sharpener Motor Speed

2800 rpm

Vacuum Generator

0.6 ≤ p ≤ 0.8 Mpa

Working Pressure

0.6 ≤ p ≤ 0.8 Mpa

Machine Weight (Net)

700 kg

Machine Weight (Gross)

950 kg

Machine External Dimensions (L * W * H)

184 * 75 * 195 cm

Machine Packing Dimensions (L * W * H)

184 * 75 * 195 cm
