Application

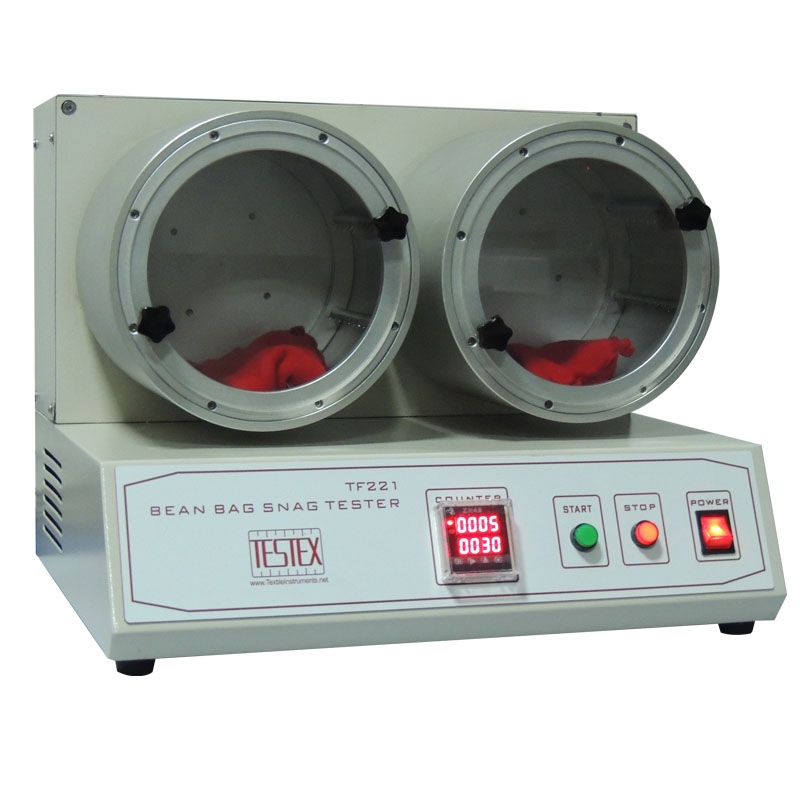

Bean Bag Snag Tester, to determine the snagging and picking resistance of knitted and woven fabrics by tumbling fabrics pillows containing a weighted bean bag within two separate test cylinders.



the bean bag snagging tester is provided with eight pinned bars, rotating at 20RPM for 100 revolutions. Provided with predetermined electronic counter.



Specifications

Rotation speed: 20r/min

Work stations: 2

Size of cylinder: Dia. 200mm

Pinned bars: 8 pcs / Cylinder

Needles: 9 pcs / Pinned bar,

Bean bag: 450 g

Standards: ASTM D5362, JIS L1058

Power: 220/110V   50/60Hz   3A

Weight: 60 Kg

Dimensions: 480x380x390mm (LxWxH)
