CRYOLIPOLYSIS BODY SLIMMING MACHINE

USER MANUAL



NBW-C132



•  Introduction to the system



the machine is controlled by computer, mainly composed of the host, the control panel and treatment handle.

the Operation and control parts of the machine located inside the host, the built-in integrated microcontroller continuously monitors the operation of equipment.

Control system includes a touch screen, handpieces, key switch and emergency stop switch.

the touch screen can show the system operating modes and parameters.



• Introduction to the operation

Treatment scope

Melting fat diet

Firming body sculpting

Circumference reduction after liposuction

Postpartum shrink around shaping



• Treatment Parameters

the allowed adjust treatment parameters for users are:

Vaccum:0-100kpa continuously adjustable

Temperature: 5--15℃ continuously adjustable



• System Description

Main equipment list of product:

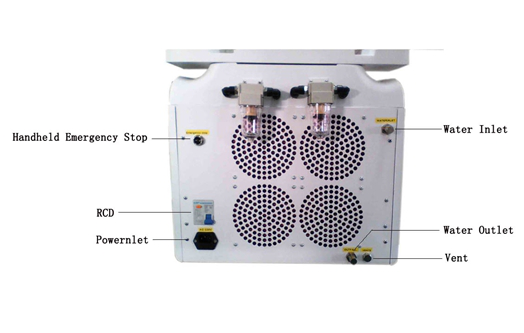

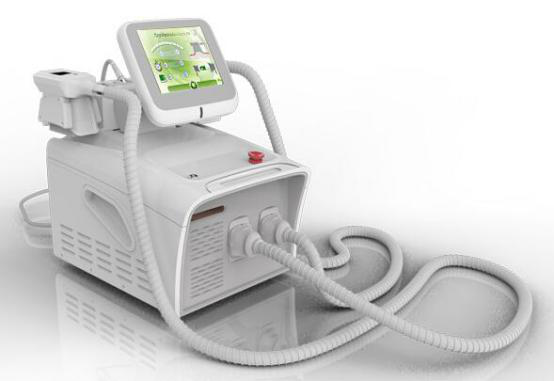

the equipment main structure as above pictures, Touch screen, Emergency Switch, Key Switch, mainframe box, cooling system, treatment handle etc.



• System components Description

  Touch screen: It is used to display and adjust the specific information of operating system.

  Emergency Stop Switch: It is used to turn off the power in emergency conditions.

  Heart rate tester: it used to clip on your fingers to test the heart rate before do the cryolipolysis treatment.

  Fat measurements pliers: Measuring thickness of the fat

  Mainframe box: Within the cooling system, power system, control system, integrated circuit, etc.

  Treatment handle: Removable type treatment handle, used to do the treatment for the customer

  Funnel:Use for adding water into the water tank

  Sponge Filter:Set on the suction mouth inside the handle, prevent liquid and sundries being suck into the handle.

  Rubber gasket:Set of interface of the handle, water mouth, to prevent leakage

  Emergency Stop Switch: Shut down the machine power supply of urgent cases

• Advantages

   1. Non-surgical, non-narcotic

   2. Non-invasive,no infection, safety

   3. No need garment, no recovery

   4. No effect the normal work

• Technical parameters

Input Power	1800W
Frozen head pressure	0-100kpa
CRyolipolysis handle screen size	3.5 Inch
Treatment handle's quantity	2Units( Optional)
Touch screen size	10.4 Inch
Frozen head temperature	-15-5℃
Cooling System	Semiconductor Cooling + water-cooling + air cooling
Dimension	60*41*50 cm
Net weight	34kg
Fuse specification	?5×2510A
Power	AC220V±10%,10A,50HZ/ AC110V±10%10A,60HZ

• Related Request

1．the system running environment requirements:

    Environment temperature: 10℃~30℃

    Relative humidity: less than 80%

2．the system storage environmental requirement:

    Environment temperature: 0℃~40℃

Relative humidity: less than 80%
