| Model Number: | JDF5064GXFSG20B |
|---|---|
| Brand Name: | Jiangte |
| Place of Origin: | China (Mainland) |
| Size: | 6225X1980X2810 |
| Max. Work Height: | 45m |
| Fuel Type: | Diesel |
| Emission Standard: | Euro 4 |
| Tank Capacity: | 3001 - 5000L |
| Horsepower: | < 150hp |
| Condition: | New |
| Transmission Type: | Manual |
| Type: | Tanker |
| Drive Wheel: | 4x2 |
| cabin: | flat 4-door |
| tank materials: | carbon steel |
| fire pump model: | CB10/20 |
Quick Details
Specifications

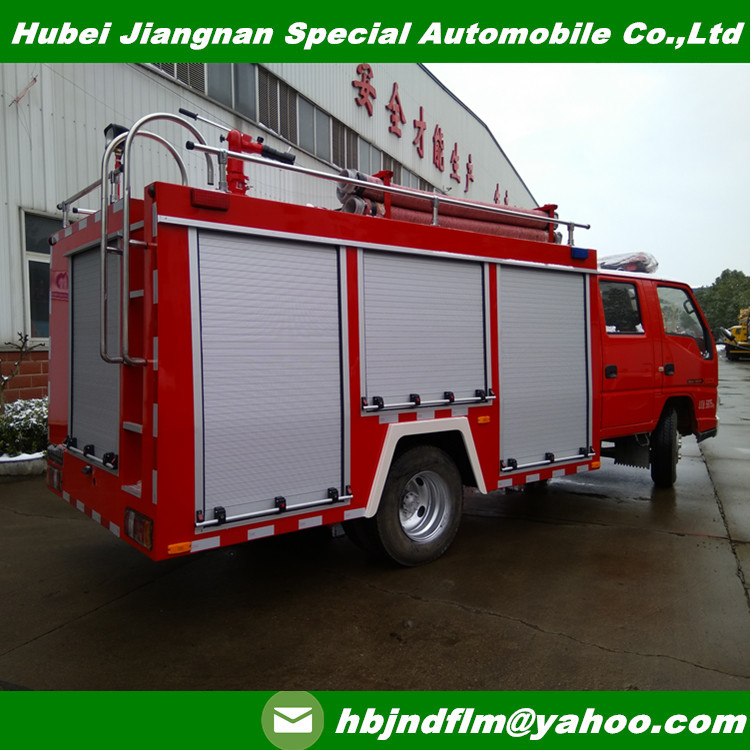

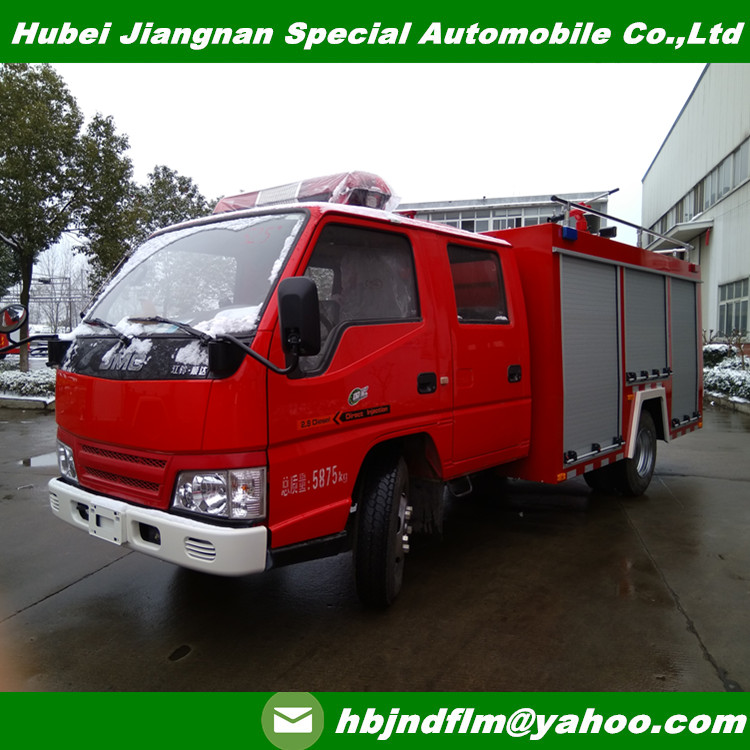

Brand new 3ton JMC water foam fire tender truck price
3ton JMC water foam fire tender truck
Water tank 2000L foam tank 1000L
We are famous fire truck manufacturer in China
Hubei jiangnan special automobile co.,ltd
Main specifications of the fire fighting vehicles
3ton JMC water foam fire tender truck
Water tank 2000L foam tank 1000L
We are famous fire truck manufacturer in China
Hubei jiangnan special automobile co.,ltd
Main specifications of the fire fighting vehicles
Name |
JMC fire fighting Truck |
Chassis model
| |
Model |
JDF5064GXFSG20B | ||
Brand |
JMC (SHUNDA) | ||
Engine model |
JX493ZLQ4 |
Power(kw) |
80 |
Displacement(ml) |
2771 |
Engine producer |
JIANGXIISUZU DIESEL ENGINE CO.,LTD |
Fuel type |
Diesel | ||
Outline size(mm) |
6225X1980X2810 |
Van size(mm) |
×× |
Gross weight(Kg) |
5875 | ||
Curb weight(kg) |
3700 |
Rated loading(kg): |
1800 |
Approach/departure Angle |
25/13 |
Front/rear hang(mm) |
1065/1730 |
Wheelbase(mm) |
3360 |
Axle loading(kg) |
1995/3880 |
axles |
2 |
Max speed (km/h) |
100 |
Oil consumption |
|
Steel spring |
7/5+5,7/5+6 |
tires: |
6 |
Tire model |
7.00R16LT |
Front truck(mm) |
1385 |
Rear track(mm) |
1425 |
Emission standard |
GB17691-2005,GB3847-2005 EUROIV | ||
Others |
Water tank capacity:3000L Fire pumpNormalpressure pump Model: CB10/20 (special for fire truck),flow: 20L/s pressure:1.0MPa Water Spraying range:45M | ||
