| Gross Vehicle Weight: | 2550 |
|---|---|
| Model Number: | EQ1060GL |
| Place of Origin: | China (Mainland) |
| Brand Name: | JIANGTE |
| Dimensions (L x W x H) (mm): | 5950x1960x2550 |
| Engine Capacity: | 95HP |
| Tank Volume: | 5001 - 10000L |
| Fuel Type: | Diesel |
| Transmission Type: | Manual |
| Horsepower: | < 150hp |
| Drive Wheel: | 4x2 |
| Storage: | sewer |
| Condition: | New |
| tank volume: | 5cubic |
| color: | white/yelloe/blue/green |
| standard: | ISO9001/CCC |
Quick Details
Specifications

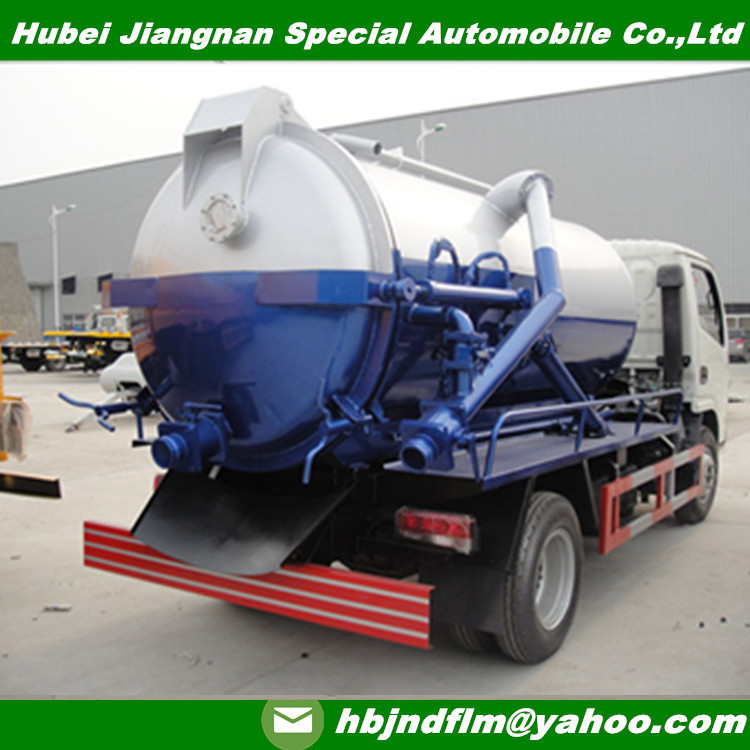

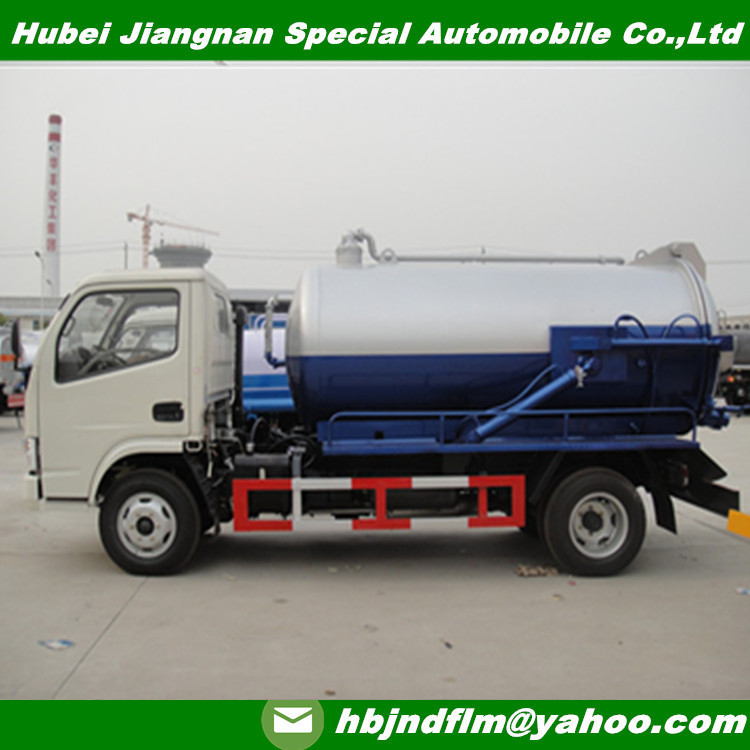

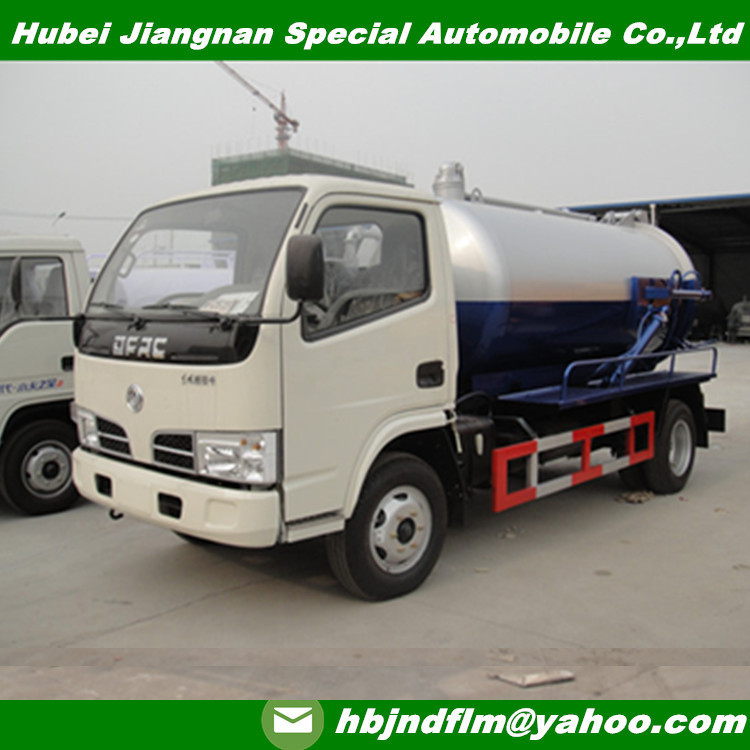

China FOTON DFAC JMC 5cubic vacuum sewage suction truck for sell
5cubic vacuum sewage suction truck
Mainly used for sucking and cleaning sewers,vacuum type suction truck producer
in China offer you best trucks.
Miain specifications of the 5cubic suction trucks
5cubic vacuum sewage suction truck
Mainly used for sucking and cleaning sewers,vacuum type suction truck producer
in China offer you best trucks.
Miain specifications of the 5cubic suction trucks
Name |
DFAC(DONGFENG) Sewage truck(5000L) | ||
Max Mass(Kg) |
6495 |
Capacity(m3) |
5 |
Rated Loading(Kg) |
1960 |
Outline Size(mm) |
5950x1960x2550 |
Curb Weight(Kg) |
2550 |
Van Size(mm) |
/ |
Cabin Seats |
3 | ||
Approach /depart angle(°) |
19/15 |
Front /rear hang(mm) |
10321518 |
Axles |
2 |
Wheel base(mm) |
3300 |
Axle Loading(Kg) |
2400/4500 |
Max Speed(Km/h) |
90 |
Chassis Data | |||
Chassis Model |
EQ1060GL |
Chassis Type |
Lorry type |
Brand |
DONGFENG |
Chassis Producer |
DONGFENG Auto co.,ltd |
Outline Size(mm) |
5845×1760×2130 |
Tires |
6+1 |
Approach /depart angle(°) |
19/15 |
Tire model |
7.00-16 |
Steel Springs |
8/9+5 |
Front Track(mm) |
1506 |
Fuel type |
Diesel |
Rear Track (mm) |
1406 |
Emission Standard |
GB3847-2005,GB17691-2005 | ||
Engine Model |
Engine Producer |
Displacement (ml) |
Power (Kw) |
CY4102-C3F |
Dongfeng Chaoyang diesel engine co.,ltd |
3856 |
70(95HP) |
Vertical Suction |
More than 7M |
Suction Level |
More than 50M |
Rated Speed |
1400r/m |
Theoretical Pumping speed |
68L/S |
Auxiliary Power |
5KW |
Air inlet Diameter |
50MM |
Features and functions |
Self-absorption since the row, durable vacuum sewage pump for pumping sewage sludge, sewage Sludge, mud, gravel and the like. | ||
