| Model Number: | ZZ1167M4617C |
|---|---|
| Brand Name: | sinotruck |
| Place of Origin: | China (Mainland) |
| Gross Vehicle Weight: | 19000 |
| Dimensions (L x W x H) (mm): | 8820x2500x3450 |
| Fuel Type: | Diesel |
| Emission Standard: | Euro 3 |
| Transmission Type: | Manual |
| Condition: | New |
| color: | red |
| capacity: | 8000liters |
Quick Details
Specifications

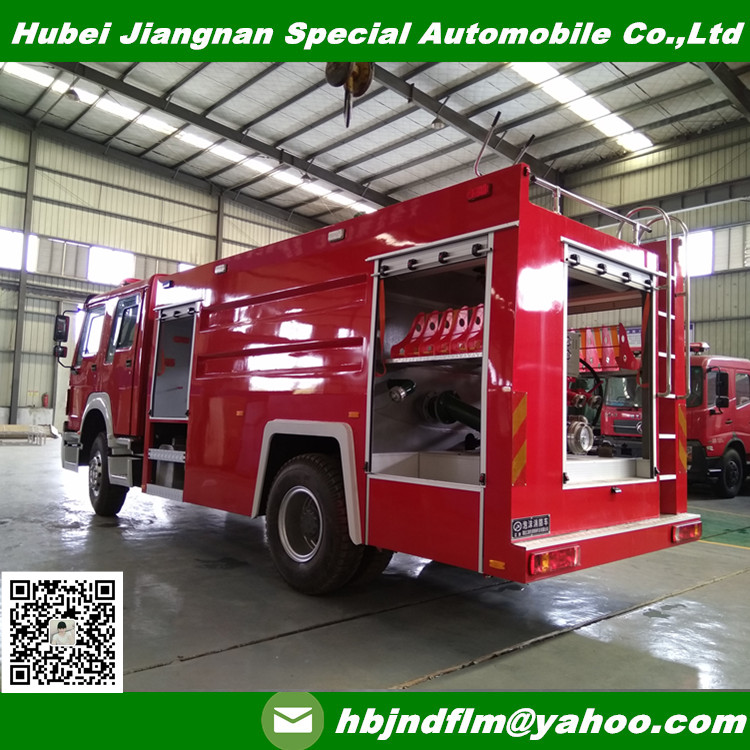

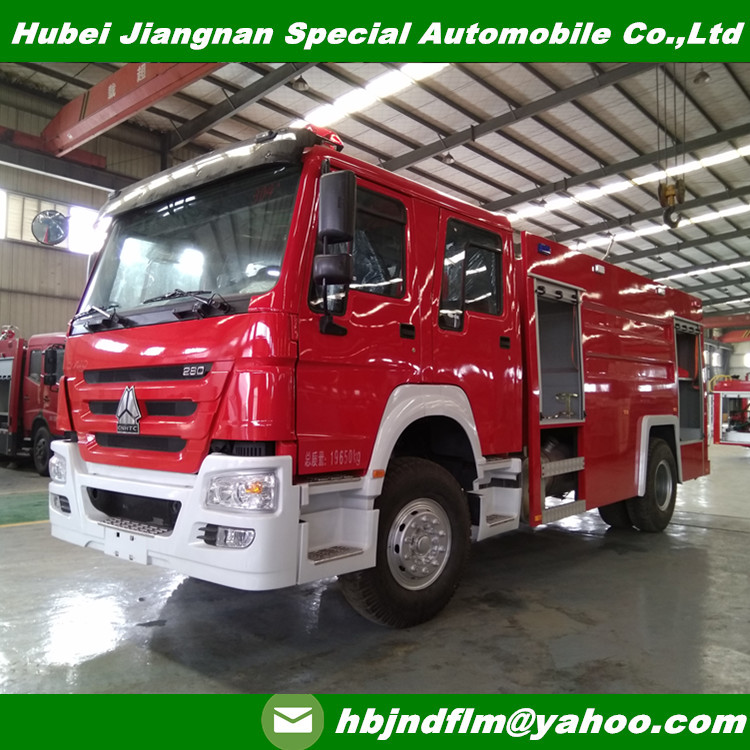

China sinotruck 8000liters fire fighting water truck
Fire truck chassis use sinotruck howo heavy-duty 4x2 chassis engine.Tank volume:8000Liters.We are fire truck manufacturer in China.
Mian specifications
Fire truck chassis use sinotruck howo heavy-duty 4x2 chassis engine.Tank volume:8000Liters.We are fire truck manufacturer in China.
Mian specifications
Name |
SINOTRUCK-HOWO WATER FOAM FIRE TRUCK |
| |
Model |
ZZ1167M4617C | ||
Brand |
SINOTRUCK HOWO | ||
Engine model |
WD615.92E |
Power(kw) |
196 |
Displacement(ml) |
9726 |
Engine producer |
SINOTRUCK AUTO CO.,LTD |
Fuel type |
Diesel | ||
Outline size(mm) |
8820×2500×3450 |
Van size(mm) |
×× |
Gross weight(Kg) |
19000 | ||
Curb weight(kg) |
11550 |
Rated loading(kg): |
7000 |
Approach/departure Angle |
16/10 |
Front/rear hang(mm) |
1500/2650 |
Wheelbase(mm) |
4600 |
Axle loading(kg) |
6000/13000 |
axles |
2 |
Max speed (km/h) |
85 |
Oil consumption |
|
Steel spring |
10/9+6 |
tires: |
6 |
Tire model |
11.00-20 18PR |
Front truck(mm) |
2022,2041 |
Rear track(mm) |
1830 |
Emission standard |
GB17691-2005,GB3847-2005 EURO3 | ||
Others |
Water tank capacity:5000L tank size:2575×1500×1300mm Foam tank capacity:1000-2000L tank size: 910×1500×1300,foam type:B Density of the B foam liquid: 1.13g/mL Protective material:Q235ground Clearance:526 mm Fire MonitorModel:PM50, Water range≥65m/1.0MPa, foam≥60m/1.0MPa Fire pumpNormalpressure pump Model: CB10/60(special for fire truck),flow: 60L/s pressure:1.0MPa Middle-low pressure pump Model:CB20.10/30.60, low pressure flow:60L/s/1.0MPa middle pressure flow:30L/s/2.0MPa | ||
