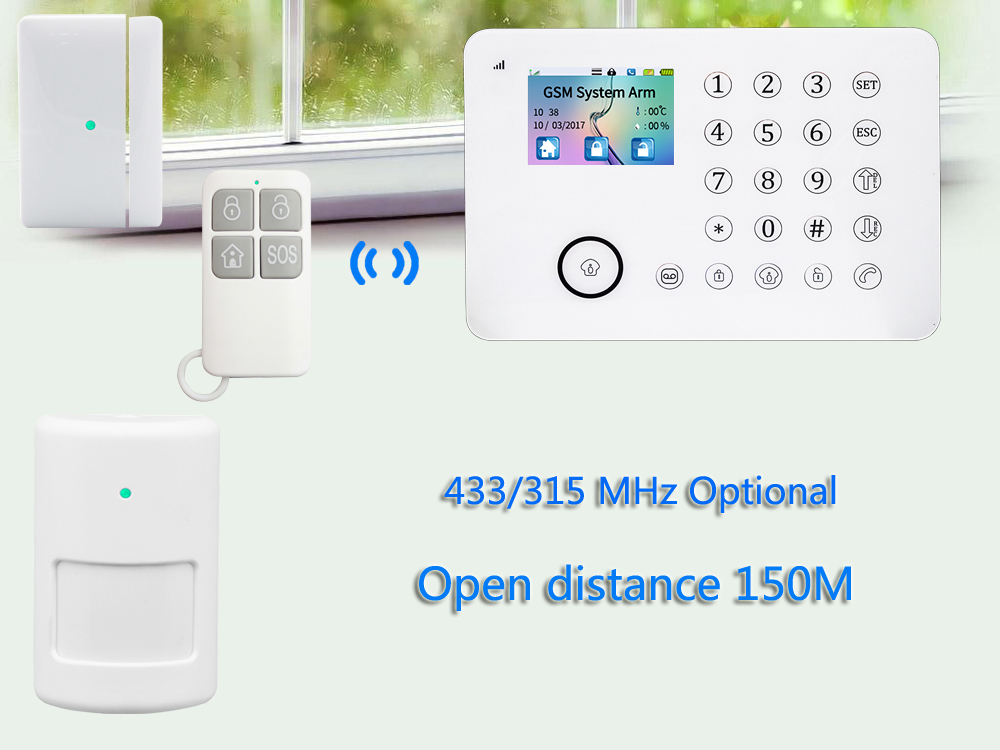

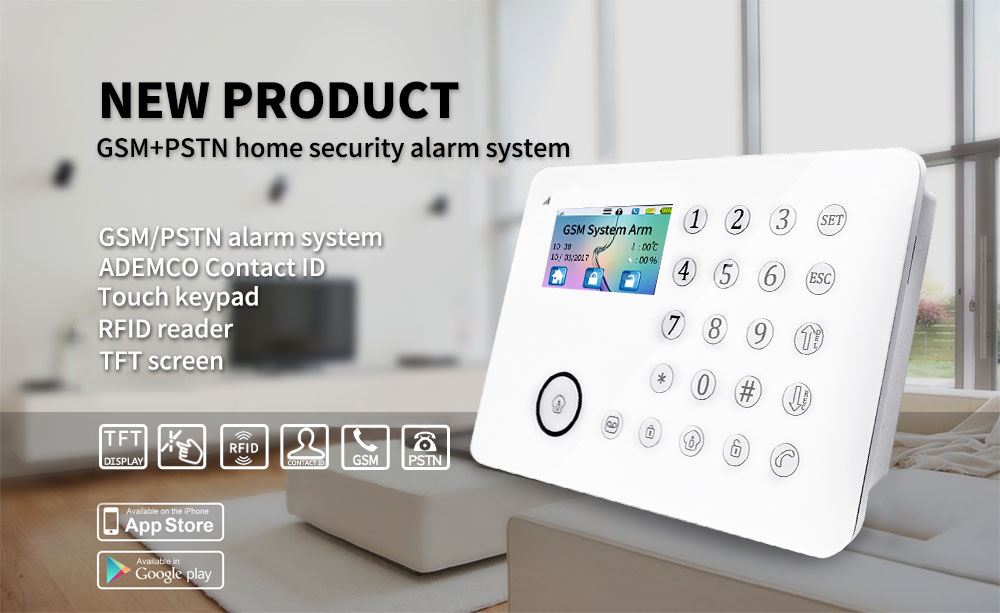

GSM/PSTN Dual-network TFT/LCD Screen keypad wireless Home Intelligent Alarm System



◎TFT screen and keypad,fashional and high-end(LCD Screen optional)

◎GSM/PSTN Dual-Network Alarm,Safer and more stable

◎Support wireless 2262/1527 accessories,with 8 remote controlles and 88 wireless zones and 1wired zone

◎Support RRFID Crad to door access and connect valve control manipulator( linkage control,),Could connect 8 groups of wireless intelligent home appliances.

◎Host can be used as an ordinary mobile phones, dial and pick up directly on the host

◎Support IOS and Android App to remote control

◎Support 6 languages (Chinese,English,Russian,Spanish,Germany,French)

◎Support wireless doorbell button, host, "ding dong, welcome" sound,support 8 types,sector selection,Partition arm/disarm

◎Support stress password, you can send alarm notice in secret when an emergency

◎Built-in 105 db loud siren, External wired or wireless siren

◎Could check 100 latest alarming record

◎SMS 5 phones automatically while alarming and driving alarm.

◎Call 5 phones automatically while alarming and driving alarm, can hear the emergency alarm voice clearly.

◎Auto-dial 1 preset phone numbers of Alarm Center

◎Built-in high capacity rechargeable lithium battery, power adapter outage,messages to inform the user

◎with wired MIC interface, switching the silence and siren.

◎Remote Arm/Disarm,listen speak,siren on/off,intelligent switch socket function

◎3 group of timing arm/disarm

◎Multi Arm/Disarm ways

◎Record function:10s record,alsoembedded artificial voice, user can know the case location and protection zones when alarm.

◎GSM frequency:850/900/1800/1900MHZ

◎with ROHS/CE/FCC certifications,conform to 3C Safety Standard and GB12663-2001 government standard





Technical parameters:

☆ GSM frequency:850/900/1800/1900MHZ ,for global use

☆ Working frequency between detector and alarm host(315M/433M optional)   Wireless distance:100-200m(without obstacles)

☆Alarm response time≤8S(GSM in normality)

☆ 88 Wireless guarding zones;

☆Working conditions Operating temperature: -45~+60℃

Humidity: ≤95%

☆standby current:5mA

☆ alarm current: <500mA

☆ standby power:< 0.3W

☆ Alarm power:< 1-2W

☆ Power adapter: :AC100- 240V  50Hz/60Hz.

DC output: DC12V / 2A

DC output: DC12V / 2A

Backup battery:DC7.5V/1200mA

Standby battery working hours≥48hours

☆ Dimension: 188mm(Long)×120mm(Wide)×28mm(High)

   Gross weight:  1.5Kg





◆WIreless magnetometer
Power supply: DC12V (built in 12V dry battery)
Static current: ≤ 20u A
Emission current: ≤ 20mA
Emission frequency: 315/433MHz + 0.5MHz
Launch distance: 80 meters (without obstacles)
Clutch distance: 15 mm
Working environment:

Operating temperature:-10 -+55 ℃

Humidity ≤90%
◆WIreless infrared detector
Power supply: DC9V (built in 9V dry battery)
Static current: ≤100u A
Emission current: ≤ 20mA
Emission frequency: 315/433MHz + 0.5MHz
Launch distance: 80 meters (without obstacles)
Detectable speed: 0.3-3 M / sec

Detection angle: horizontal110 degrees, vertical 60 degrees
Working environment: operating temperature -10-+55 ℃

Humidity ≤90%
◆REmote controller
Power supply: DC12V (built in 12V dry cell)
Static current: 0

Emission current: ≤15mA
Emission frequency: 315/433MHz + 0.5MHz
Launch distance: 80 meters (without obstacles)
Working environment: operating temperature -10-+55 ℃

Humidity ≤90%





the touch type TFT/GSM/RFID domestic/commercial burglar alarm system, combined with advanced GSM digital signal and network technology. Integrated digital voice, remote home appliance control, SMS Alarm etc.Humanized control,automatic voice or SMS when alarm informing case and access address.Stable, reliable and safe,entire wireless transmission, easy to install.Intelligent judgment alarm area and control,(kitchen, doors and Windows open, hall, balcony, corridor, electrical), and so on. Widely used in homes, factories, schools, shops, convenience stores, financial room, villa, residential area, etc.
