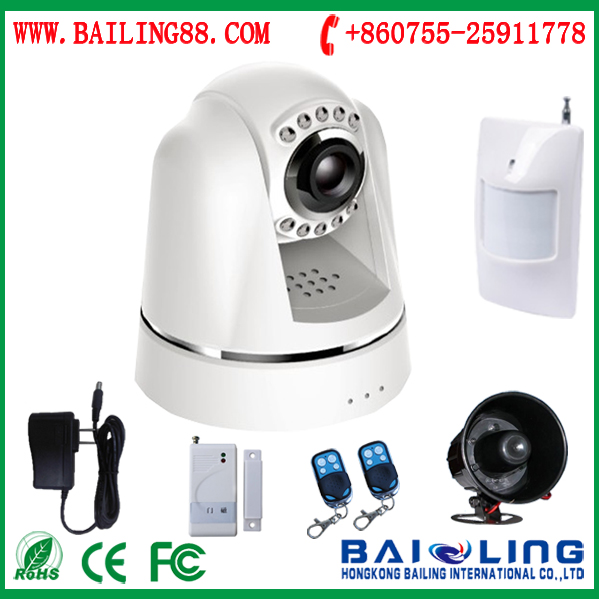

Home /Office/Supermaket usage GSM 3G E800 Video Home intelligent burglar alarm system


1.WCDMA FREQUENCY(Optional)

A: Dual-Band UMTS/HSDPA 850/1900MHz
       Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
E: Dual-Band UMTS/HSDPA 1900/2100MHz
       Tri-Band GSM/GPRS/EDGE 850/900/1800MHz
J: Dual-Band UMTS/HSDPA 850(800)/2100MHz
       Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

Main feature:

1.Monitoring video by dialing-in camera based on 3G SIM cards via remote control.
2.with PTZ, Pan 0-360 degree and Tilt 0-90 degree rotation
3.with 1200 mA backup battery to make sure the system could continue to work when AC power is off.
4.Remote control the camera to arm/disarm/turn on siren/turn off siren/2-way talking/digital zoom etc during 3G video call.
5.Active alarm function: Can work with 433mhz alarm sensors, PIR sensor, smoke sensor, etc,
5X Digital Zoom function to make you see clear image on your 3G phone.
Auto dial 5 group phone numbers presetting, send SMS/MMS alert after system triggered.
6.Setup by SMS,Dial-in/SMS to remote control the camera to watch monitoring video via 3Gphone
7.SMS notification if any sensor is triggered
8.Security and reliability,End-to-end video transmission is better for protect user's privacy
9.Video mode:Alarm video,video telephone.
10.3 wired zones and 88 wireless zones.
11.User permission function, Can be set up 5 groups access permission.
12.External 4G TF card,4000 photos Can be stored
13.Conform to CE,ROHS,FCC international certification standards.

Optional accessories: PIR sensor, Emergency buttom,water sensor,vibration sensor,Gas sensor,CO sensor,siren,magnetic sensor.

Technical parameters:
GSM  frequency:850/900/1800/1900MHZ
3G WCDMA HSUPA:850,900,1800,1900,2100 apply to worldwide
RF frequency:315M/433M optional
Remote distance:50-200 meters(No obstacles)
Alarm response time:≤8S(GSM in normality)
Wireless sensors:88 wireless zones and 3 wired zones for connecting wireless sensors
Operating temperature:-45~+60°C
Humidity≤95%(No condensing)
Barometric pressure:86~106kpa
Ambient noise≤60dB
Standby current:5mA
Alarm current:<500mA
Standby power:< 0.3W
Power adapter
AC100- 240V  50Hz/60Hz
DC output
DC12V / 2A

Backup battery
DC7.4V/1200mA
Standby battery working hours≥48 hours
Dimension:10.5cm*11cm*13cm
Arm time delay:5~99s
Static current<80mA
Alarm current<400mA
Power input:12V,1200mAh
GSM/WCDMA:Compatible
Memory Storage SD card:4G
Video parameters adjustment:Intensity control,image resizing
Built-in microphone & speaker:2-way talking
Pan rotation:0-270 degree
Tilt rotation:0-90 degree
