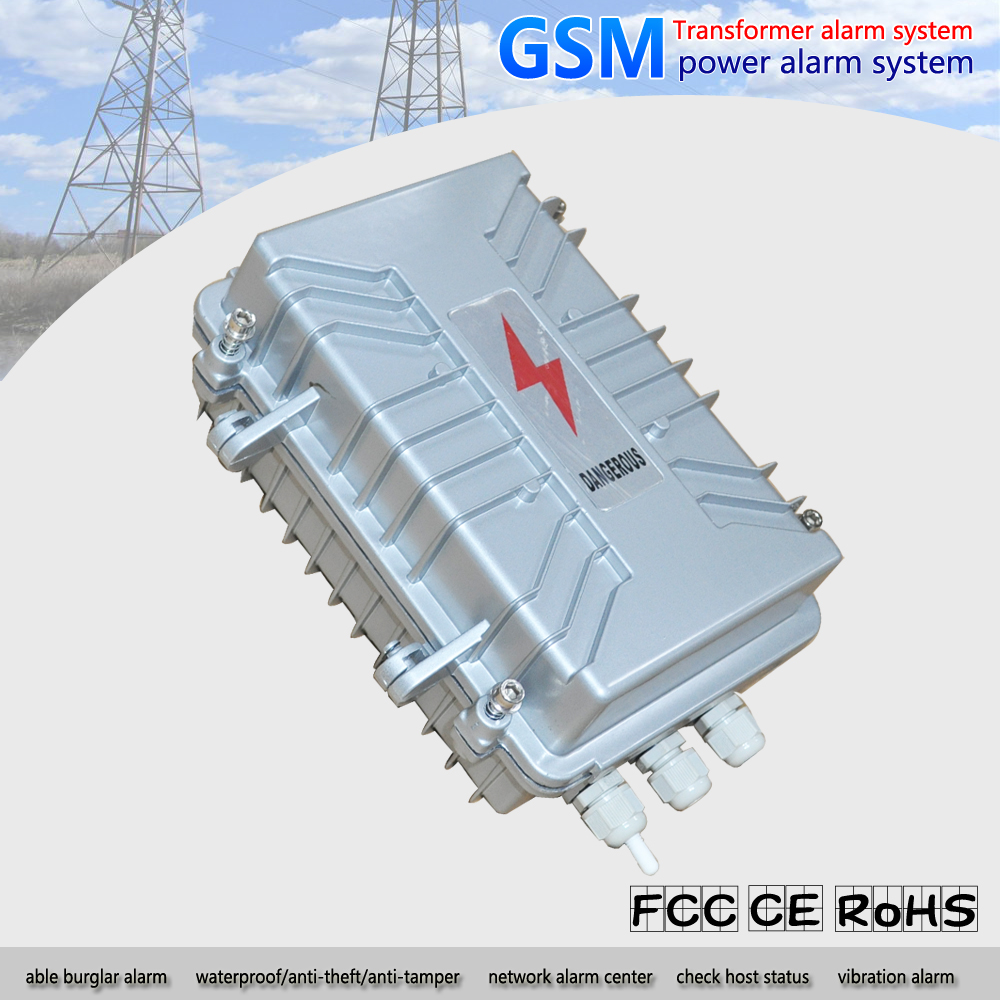

Alarm Suitable for Power Energy BL3000 433/315mhz frequency GSM security alarm systemMain feature:

1.Can connect external industrial camera, this system with own SMS, MMS, Email functions

2.8 wired zones, open/closed alarm mode is optional by self-programming

3.Fixed code: 40 wireless zones,315/433MHz(optional)

4.Digital inputs are adopted optical-coupled isolators, which can prevent external high voltage from destroying internal components.

5.Send SMS automatically to report the state of digital input when it returns normal status.

6.Wireless keyboard for setting phone No.

7.Arm/disarm remotely through GSM SMS.

8.Send SMS and auto-dial to 5 preset mobile phone numbers while alarming and monitor the sound at site.

9.Record function: Maximum recording time:1 min

10.Voice function: support play the user record voice

11.with wired Mic interface and siren interface

12.Inquiry Host's status /Alarm events/Zones'name and arm/disarm status through SMS

13.Digital inputs are adopted cal-coupled isolators, which can prevent external high voltage from destroying internal.

14.GSM network wireless communication for alarm, no PSTN cable, not fear cable cut

15.Connect with alarm center through GSM network

Technical parameters:

1. GSM frequency band: 850/900/1800/1900MHZ(quad band)

2. Response time≤8s(GSM network normal)

3. Working conditions:

Operating temperature:-45~+60℃   Humidity ≤95% no condensation

4. Standby current:5mA

5. Alarm current: <500mA

6. Standby power consumption:< 0.3W

7. Alarm consumption:< 1-2W

8. Adapter voltage:AC100- 240V  50Hz/60Hz.

Output voltage: DC12V / 2A
