Main Feature:

◎TFT touch screen, Humanized Nine Patch menu, operating voice prompts. (LCD screen optional)

◎Indoor Temperature and humidity measurement

◎Match wireless intelligent learning code 2262/1527 optional

◎Support connecting 8 remote controller, 88 wireless guarding zones & 1 wired guarding zone

◎Can control 8 wireless home appliances, support connecting external RFID card or external valve (linkage control, default value is closed)

◎the host can be used as a regular mobile phone. Users can use the host to make or receive a call

◎Support Android & IOS APP

◎Support 6 kinds of languages: Chinese, English, Russian, Spanish, German, and French;

◎Support connecting wireless doorbell button . When users press the doorbell button ,the host voice "ding dong, welcome " sound. There are 8 types of guarding zones, to select or define guarding zones and arm/disarm;

◎with coercion password function, you can send secret alarm message under emergency situation

◎ Built-in 105DB treble siren, support connecting wireless or wired siren;

◎Support alarm storage records: Max 100pcs

◎Users can preset 5 groups of GSM SMS alarm phone number, send sms to users while alarm is triggered;

◎Users can preset 5 groups of GSM alarm phone number, and also can monitor the alarm scene;

◎Can set up 1 group of alarm center phone number, auto dial the security management center while alarming;

◎Built-in rechargeable high-capacity Li-battery, the host send sms to inform the users when adapter power is off;

◎with external MIC interface, switching the sound off and siren

◎Can remote to arm and disarm, intercom, call, setup alarm host on/off, smart socket function.

◎SupportThree groups of timing arm and disarm function

◎Support different arm / disarm mode: SMS, Speak, APP, host panel, remote controller, alarm center software control etc;

◎ 10 seconds automatic message record and embedded artificial voice. Users can know the alarming location and zone number through the alarm center

◎ Work frequency: GSM 850 / 900/1800 / 1900MHz

◎with ROHS/CE/FCC certifications,Conform to 3C Safety Standard and GB12663-2001 government standard



Main technical parameters

☆ GSM frequency: 850/900/1800 / 1900MHZ (quad-band) for the world

☆ wireless frequency: 315/433 / 868MHz

Wireless distance: 100-200 meters (open distance)

☆ data response time: ≤ 8 seconds (GSM network normal state)

☆ can be configured wireless zones capacity: 88

☆ Working conditions: Temperature: -45 ~ +60 ℃ Humidity: ≤ 95% No condensation

☆ standby current: 5mA

☆ Alarm current: <500mA

☆ standby power consumption: <0.3W

☆ alarm workers consumption: <1-2W

☆ Adapter voltage: AC100- 240V  50Hz / 60Hz.

Output voltage: DC12V / 2A

Backup battery: DC7.5V / 1200mA

    backup battery working time ≥ 48 hours

☆ Overall dimensions: 188mm (length) × 120mm (width) × 28mm (thick)

   Weight: Packaging 1.5Kg



◆ Wireless magnetic sensor

Power supply: built-in 1.5V dry battery

Quiescent current: ≤ 20u A

Emission current: ≤ 20mA

Transmitting frequency: 315 / 433MHz ± 0.5MHz

Launch distance: 80 meters without barrier

Clutch distance: 10 mm

Working environment: temperature -10 ℃ ~ +55 ℃ relative humidity ≤ 90%





◆ Wireless infrared detectors

Power supply: built-in 9V dry battery

Quiescent current: ≤ 100u A

Emission current: ≤ 20mA

Transmitting frequency: 315 / 433MHz ± 0.5MHz

Launch distance: 80 meters without barrier

Detectable speed: 0.3-3 m / s

Detection angle: the level of 110 degrees straight 60 degrees

Working environment: temperature -10 ℃ ~ +55 ℃ relative humidity ≤ 90%

◆ remote control

Power supply: built-in 3V button battery

Quiescent current: 0

Emission current: ≤15mA

Transmitting frequency: 315 / 433MHz ± 0.5MHz

Launch distance: 80 meters without barrier

Working environment: temperature -10 ℃ ~ +55 ℃ relative humidity ≤ 90%

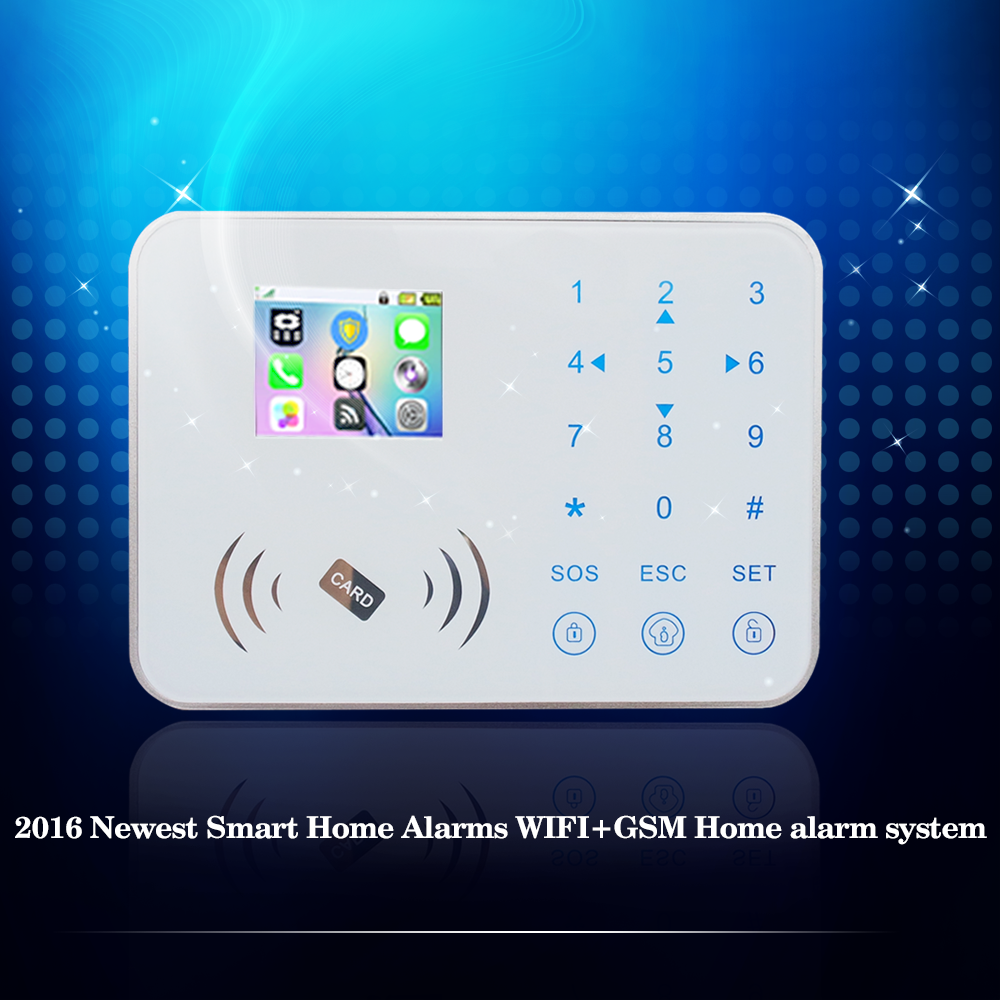

Full touch screen TFT / GSM / RFID home / commercial usage burglar alarm system, it combines with the advanced GSM digital signal and network technology. with integrated digital voice, remote home appliances control, SMS identification alarm, auto dial/SMS to inform the incident location to the police while alarming. It is stable, reliable, and safe. with wireless transmission and easy installation. It is intelligent to detect alarm places (kitchen, doors and windows open, hall, balcony, corridor, electrical etc) and notify users automatically. It is widely used in the homes, factories, schools, shops, stores, financial room, villas, community and so on.
