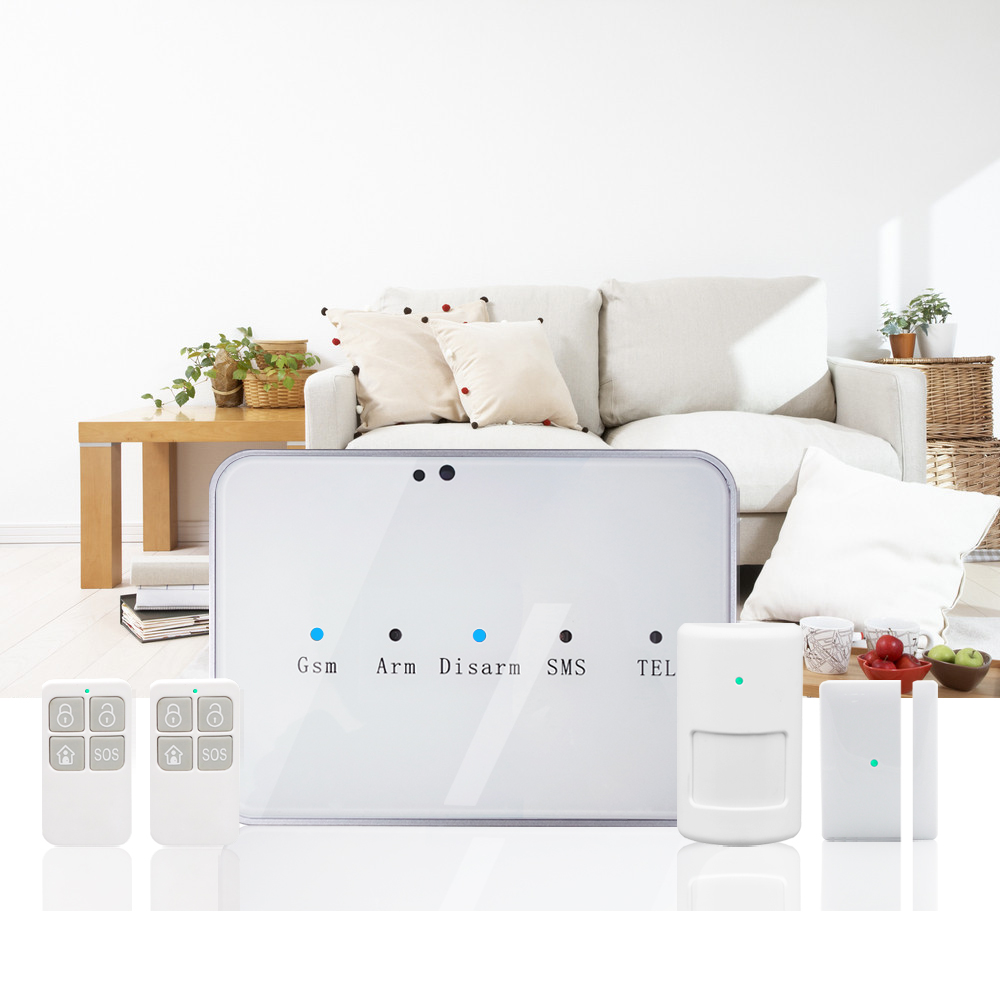

Wireless 3G GSM Camera Home anti-theft Alarm System



Main Features:

1. 3G Mobile phone remote video call monitoring,20,0000 pixel camera.

2. while the alarm system is triggered, the host can make a video call with high-definition video screen in place where mobile phone has 3G signal.

3. It can send SMS to 5 groups of phone numbers, send MMS to 5 groups of phone numbers, make a video call to 3 groups of phone numbers,  make a vioce call to 3 groups of phone numbers.

4. Its inbuilt SD card can store voice, image, and video, for long-term keeping evidence.

5. Users can hear voice clearly on the scene when the alarm system is triggered.

6.Users can send SMS to mobile phone to let the camera shoot photo.

7.Users can remote control the host to arm/disarm through cell  phone keyboard. When alarm system is triggered and siren ring, users can turn on/off the host via cell phone keyboard, and two-way audio.

8. Users can send sms command to remotely check the status on the scene,make a video call to remotely arm/disarm, watch videos, Monitor, record video, record voice.

9. It supports SMS alert when AC power failure or  recovery. the backup battery operation is lasting 48 hours

10. It supports 3 wired defense zones and 88 wireless learning code defense zones. the host has anti-dismantle function and AC power failure alert function.

11.It Supports alarm center software, remote control several hosts at the same time and check their status via computer.

12. Conform to CE,ROSH, FCC international certification standards



Technicial Parameters:

GSM frequency: 850/900/1800/1900MHZ

3G WCDMA HSUPA 850/900/1800/1900/2100MHZ(select)

RF frequency(315M/433M optional)

Receiving encoding :ASK

Remote distance: 50-200 meters(without obstacles)

Alarm response time≤8S(GSM in normality)

88 wireless zones for connecting wireless sensors

Operating temperature: -45~+60℃  Humidity: ≤95%

Barometric pressure     86~106kpa ambient noise     ≤60dB

Standby current:5mA

Alarm current: <500mA

Standby power:< 0.3W

Power adapter: :AC100- 240V 50Hz/60Hz.

DC output:: DC12V / 2A

Backup battery:DC7.4V/1200mA

    Standby battery working hours≥48 hours

Dimension: 5.2cm*4cm*2cm

Arm time delay     1~45s

Static current     <80mA

Alarm current     <400mA

Power input 12V,1200mAh

Compatible with GSM/WCDMA

Video parameters adjustment,     intensity control,image resizing

Built-in microphone & speaker for 2-way talking

Memory Storage SD card

Standard configuration:

1 X BL—CG08 GSM control panel
1 X Mini siren with 110DB sounds
1 X PIR sensor

1 X door sensor

2 X Remote controller

1 X Power adapter
1 X English user manual
