COMPANY INFORMATION:
We're expert in manufacturing automatic painting machine and related machines for furniture processing field. We
Can customize machine according to your requirements. You can get timely service and technical support from us.
.
TECHNICAL PARAMETERS:

Product Name	KS 1100 Automatic Door Painting Machine
Max Painting Length	2400mm( can customize according to customer's need)
Max Painting Width	1100mm( can customize according to customer's need)
Max Painting Thickness	150mm
Spray Gun	2 pieces, Japan ANEST IWATA spray gun
Spray Gun moving speed	0~1500mm/s
Spray Gun caliber	1.3mm
Servo motor	Japan Panasonic
Pneumatic Parts	Taiwan AirTAC pneumatic parts
Air pressure	0.6MPA
Types of paint	PE, PC,PU, NC, UV, water based paint, etc
Filter System	Filter paper & filter cotton
Air Exhaust Fan	2sets 2.2KW fans
Control System	ADtech 5 Axis control system
Total Power	8.9KW


MACHINE APPLICATION:
this machine can be used for painting wooden doors, cabinet doors,wardrobe panels and other wooden
Furniture panels.

MACHINE FEATURES:

1.It can paint two surface+ 4 sides for one time, increase working efficiency
2.Only need two ordinary workers can finish the whole process. the capacity is 160-190 doors per day(8 hours)
3.Our machine use 5 Axis touch screen control system,it's easy to learn.
4. Reduces paint cost and labor cost.
5.It's equipped with air intake & air exhaust system, can filter the over spray. It is environmental friendly.
6.the Panasonic servo motor can ensure high precision work, get smooth painting surface
7.the machine use Taiwan HIWIN guide rail, can guarantee stable work
8.the spray guns are Anest Iwata Spray Gun from Japan.
9.We supply spare parts for customers
10.Mainly be used for painting door panels,like wooden door, MDF doors, etc

11.It combines the control panel with the main machine part together.It's easy to install the machine.

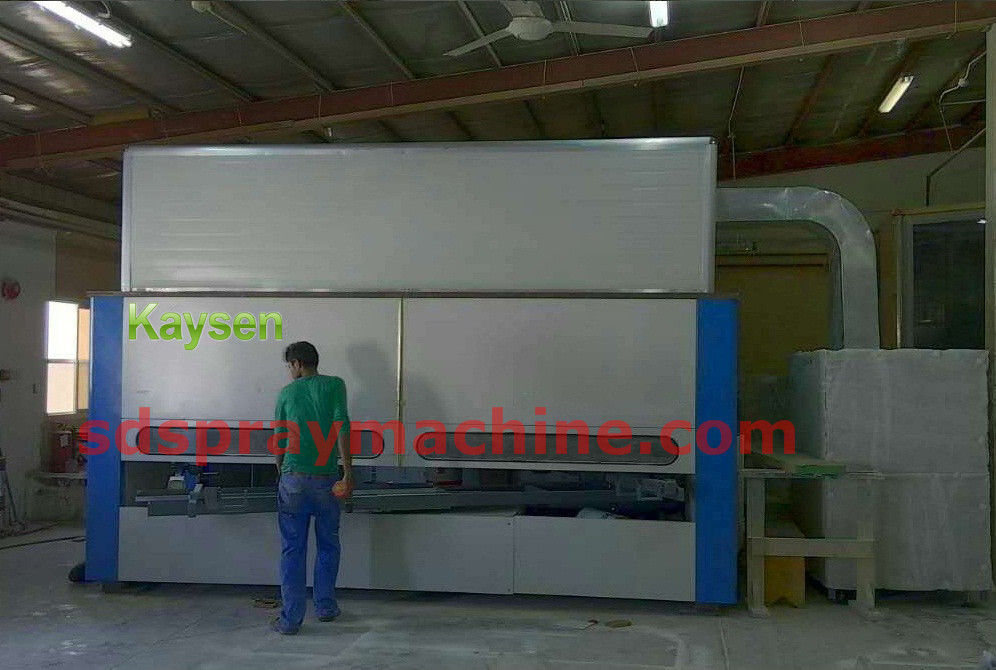

MACHINE PICTURE:
