TECHNICAL PARAMETERS:

Product Name	KSH 1100 Automatic Door Painting Machine
Max Painting Length	2500mm( can customize according to customer's need)
Max Painting Width	1100mm( can customize according to customer's need)
Max Painting Thickness	150mm
Spray Gun	2 pieces, Japan ANEST IWATA spray gun
Spray Gun moving speed	0~1500mm/s
Spray Gun caliber	1.3mm
Servo motor	Japan Panasonic
Pneumatic Parts	Taiwan AirTAC pneumatic parts
Air pressure	0.6MPA
Types of paint	PE, PC,PU, NC, UV, water based paint, etc
Filter System	without
Air Exhaust Fan	without
Control System	ADtech 5 Axis control system
Working Voltage	According to customer requirement


MACHINE APPLICATION:
this machine can be used for painting wooden doors, cabinet doors,wardrobe panels and other
Wooden furniture panels.

MACHINE FEATURES:
1.Can paint two surface+ 4 sides for one time, increase working efficiency
2.Only need two ordinary workers can finish the whole process. the capacity is around 200 doors per day(8 hours)
3.Our machine use 5 Axis touch screen control system,it's easy to learn.
4. Reduces paint cost and labor cost.
5.It cannot filter the over spray. You need to put this machine in a spray booth
6.the Panasonic servo motor can ensure high precision work,get smooth painting surface
7.the machine use Taiwan HIWIN guide rail,can guarantee stable work
8.the spray guns are Anest Iwata Spray Gun from Japan.
9.We supply spare parts for customers
10.Mainly be used for painting door panels,like wooden door,MDF doors,etc

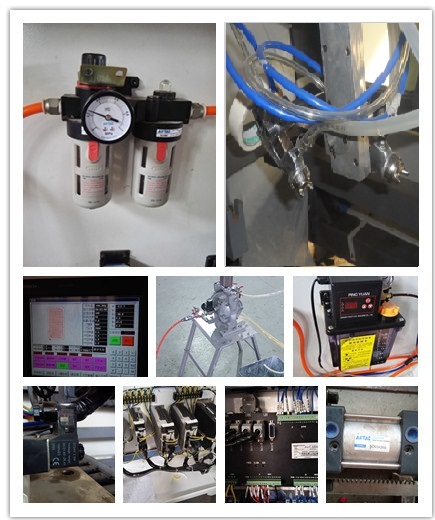

MACHINE PARTS:
