| Type: | TFT |
|---|---|
| Brand Name: | CNK |
| Interface Type: | SPI |
| Resolution: | 320(RGB)x240 |
| application: | LCD |
| Model Number: | CNK035GT-07-CH6DB |
| Place of Origin: | China (Mainland) |
| Diagona screen size: | 3.5inch |
| Resolution: | 320(RGB)x240 |
| Driver IC: | Novatek NT39016D |
| Color depth: | 24bit |
| Viewing direction: | 12 o |
| Pixel pitch: | 0.219x0.219mm |
| Module outline(WxHxD): | 76.9x63.9x2.95mm |
| Active area(WxH): | 70.08x52.56mm |
| Operating temperature: | -20C-+70C |
| Storage temperature: | -30C-+80C |
Quick Details

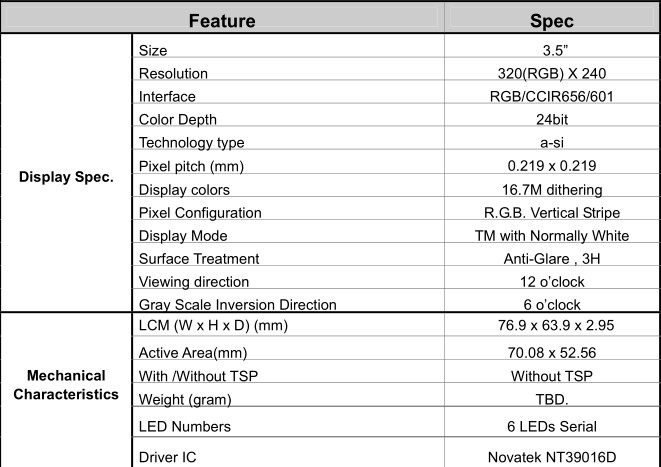

Specifications
CNK Electronics CO.,LTD.
- Features:
- LCD type: TFT transmissive
- Diagona screen size:3.5inch
- Viewing direction:12 o'clock
- Display mode:TM with Normally white
- Color depth:24bit
- Pixel pitch:0.219x0.219mm
- Module outline(WxHxD):76.9x63.9x2.95mm
- Active area(WxH):70.08x52.56mm
- Resolution:320(RGB)x240
- Driver IC:Novatek NT39016D
- Backlight Type:LED
- Operating temperature:-20C-+70C
- Storage temperature:-30C-+80C
