| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Sling Type: | Wire Rope |
| Power Source: | Electric |
| Brand Name: | Chenge |
| Condition: | New |
| Warranty: | 1 year |
| Certification: | ISO9001 |
| Lift Speed: | 2-8M |
| Maximum Lifting Height: | 20m |
| Maximum Lifting Weight: | 10t |
| Usage: | Construction Hoist |
| Model Number: | CD1/MD |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
1.Brief Introduction:
Model CD1, MD1 wire rope electric hoist is small-sized lifting equipment, which can be mounted on single beam, overhead, gantry and jib cranes, with slight modification, it can also be used as a winch. It is widely used in factories, warehoused, cargo store areas and shops. It is essential equipment in raising working efficiency and improving working conditions.
2.Techincal parameters:
CD1/MD1 WIRE ROPE HOIST Model
CD1/MD1 Capacity(t)
0.5
1
2
3
5
10 Hoist height(m)
6 9 12
6 9 12 18 24
6 9 12 18 24
6 9 12 18 24
6 9 12 18 24
9 12 18 24 Hoisting Speed(m/min)
8;8/0.8
8;8/0.8
8;8/0.8
8;8/0.8
8;8/0.8
7;7/0.7 Operating Speed(m/min)
20(30)
20(30)
20(30)
20(30)
20(30)
20(30) Diameter of wire rope(mm)
4.8
7.4
11
13
15
17 Type of-Beam
16a-28b
16a-28b
20a-32c
20a-32c
25a-63c
25a-63c Lifting Motor
Power(kw)
0.8 0.2/0.8
1.5 0.2/0.8
3 0.4/3
4.5 0.4/4.5
7.5 0.8/7.5
13 1.5/13 Rotation speed(m/min)
1380
1380
1380
1380
1380
1400 Phases
3
3
3
3
3
3 Voltage(v)
380
380
380
380
380
380 Frequency(Hz)
50
50
50
50
50
50 Electric current(A)
2.4 72/2.4
4.3 0.72/4.3
7.6 1.25/ 7.6
11 2.4/11
18 2.4/18
30 4.3/30 Running motor
Power(kw)
0.2
0.2
0.4
0.4
0.8
0.8*2 Rotation speed(m/min)
1380
1380
1380
1380
1380
1380 Phases
3
3
3
3
3
3 Voltage(v)
380
380
380
380
380
380 Electric current(A)
0.72
0.72
1.25
1.25
2.4
2.4*2 Frequency(Hz)
50
50
50
50
50
50 Working Level
M3
M3
M3
M3
M3
M3
3.Performance features:
Model: CD1, MD1
Lift height: 1-110M
Lift speed: 8m/min, 8/0.8m/min

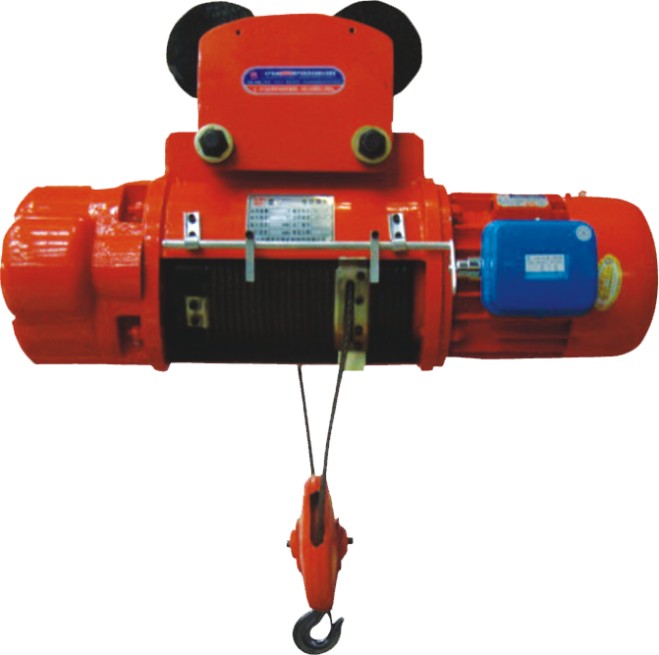

CD1, MD1 Type Electric Hoist
