1.Brief Introduction:



S&K Excellent - Double Glazing Insulating Glass Production Line.

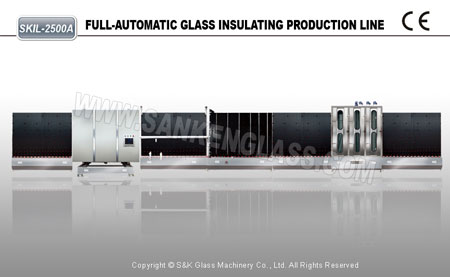

Insulating Glass Machine Double Glazing Glass Line

- Self-diagnosis system with touch screen on computer

- Stainless steel washer with 8 ( 6 ) brushes, soft brushes from MONFORTS of Germany, hard brushes automatically open when Low-E glass input

- Rotate speed of brush frequency control(optional)

- Stainless steel air knife is automatically adjustable according to glass thickness, Max thickness to 19mm

- High speed cleaning ( max 14m/min), Low noise ( max 70dB), high availability working ( 25 second /unit)

- Automatic detection of Low-E glass and alarm for coating in reverse(optional)

- Structure stepped and three-layer I.G. Unit available(optional)

- Precision of plate press ±0.3mm



2.Techincal parameters:
  Major technical specifications:
1.Min. 400×580mm
2 Max. 2500×3000mmmm
3. Washing Speed: 2-12m/min
4. Max. Working Speed: 45 m/min
5. Glass Sheets Thickness: 3-12 mm
6. Insulating Thickness ≤40 mm
7. Production Capacity: approxxi 800pcs/8hours
8. Power: 30KW
9. Weight: 7800 KGS
10. Produciton Line Size: 21350×4000×3300mm
