| Usage: | Metallographic Grinding &Polishing Machine |
|---|---|
| Power: | Electronic |
| Model Number: | LT Series |
| Brand Name: | Lmet Test |
| Place of Origin: | China (Mainland) |
| Name: | Metallographic Grinding & Polishing Machine |
| Model: | LT Series |
Quick Details
Specifications

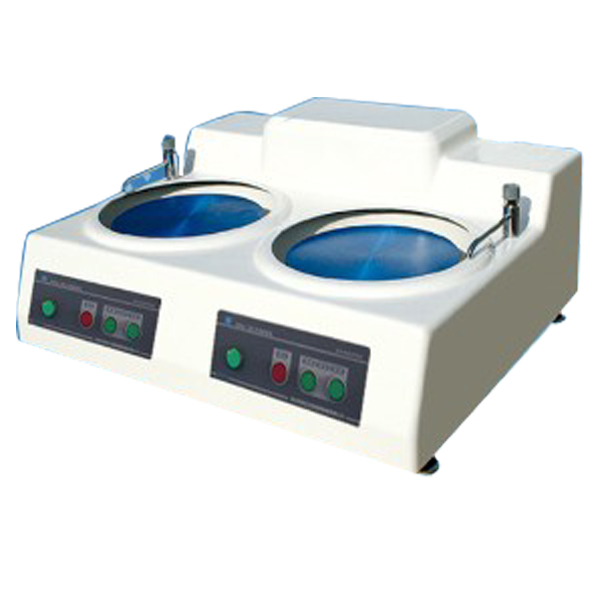

Metallographic Grinding Machine
Model: LT-MP-2
FUNCTIONAL FEATURES--Metallographic Grinding Machine
● Dual- Disc design with left grinding disc right polishing disc;
● Applicable to metallographic sample pre-grinding, grinding, polishing;
● Cooling system introduced to cool metallic test specimens;
TECHNICAL PARAMETERS--Metallographic Grinding Machine
Machine Model |
LT-MP-2 |
Pre-grinding Disc Diameter |
230 mm |
Pre-Grinding Disc Speed |
450 RPM |
Grinding Disc Diameter |
203 mm |
Grinding Disc Speed |
600 RPM |
Driven Motor |
370W |
Power Input |
220V, 50Hz |
Overall Dimension |
700×600×280 mm |
Gross Weight |
50kg |
------------------------------------------------------------------------------------------------------------------------------------------------------
Model:LT-MP-2D
FUNCTIONAL FEATURE----Metallographic Grinding Machine
● Dual-Speed 150RPM/300RPM Dual-Driven grinding polishing machine;
● Applicable to metallographic sample pre-grinding, grinding & polishing;
● Cooling system introduced to cool metallic test specimens;
TECHNICAL PARAMETER----Metallographic Grinding Machine
Machine Name |
Grinding-Polishing Machine |
Machine Model |
LT-MP-2D |
Pre-Grinding Disc Diameter |
203 mm 250 mm optional |
Pre-Grinding Disc Speed |
150/300 RPM |
Sand Paper Diameter |
200 mm 250mm optional |
Driven Motor |
120W/370W |
Power Input |
380V, 50Hz |
Overall Dimension |
700×600×270 mm |
Gross Weight |
50kg |
--------------------------------------------------------------------------------------------------------------------------------------------------
Model:LT-MP-2B
FUNCTIONAL FEATURES----Metallographic Grinding Machine
● Dual-Disc Design Grinding-Polishing Machine;
● Controllable speed at 50-1000 RPM driven by Inverter;
● Cooling system introduced to cool metallic test specimens;
TECHNICAL PARAMETER-----Metallographic Grinding Machine
Machine Name |
Grinding-Polishing Machine |
Machine Model |
LT-MP-2B |
Pre-Grinding Disc Diameter |
203 mm |
Pre-Grinding Disc Speed |
50~1000 RPM |
Driven Motor |
550W |
Power Input |
220V, 50Hz |
Overall Dimension |
700×670×320 mm |
Gross Weight |
50kg |
---------------------------------------------------------------------------------------------------------------------------------------------
Model: LT-MP-1B
Machine Name |
Grinding Polishing Machine |
Machine Model |
LT-MP-1B |
Pre-grinding Disc Diameter |
203 mm |
Pre-Grinding Disc Speed |
50~1000 RPM |
Driven Motor |
250W |
Power Input |
220V, 50Hz |
Overall Dimension |
615×380×270 mm |
Gross Weight |
20Kg |
-------------------------------------------------------------------------------------------------------------------------------------------------
Model:LT-MP-260E-----Metallographic Grinding Machine
Machine Name |
Grinding Polishing Machine |
Machine Model |
LT-MP-260E |
Pre-grinding Disc Diameter |
203 mm 250 mm optional |
Pre-Grinding Disc Speed |
50-600 RPM Stepless Speed Variants |
Sand Paper Diameter |
200 mm 250mm optional |
Driven Motor |
550W |
Power Input |
220V, 50Hz |
Overall Dimension |
700×600×270 mm |
Gross Weight |
50kg |
--------------------------------------------------------------------------------------------------------------------------------------------------
Model:LT-MP-260-----Metallographic Grinding Machine
Machine Name |
Grinding-Polishing Machine |
Machine Model |
LT-MP-260 |
Pre-grinding Disc Diameter |
203 mm 250 mm optional |
Pre-Grinding Disc Speed |
150RPM or 300RPM Constant Speeds |
Sand Paper Diameter |
200 mm 250mm optional |
Driven Motor |
550W |
Power Input |
380V, 50Hz |
Overall Dimension |
700×600×270 mm |
Gross Weight |
50kg |
