| Type: | TFT |
|---|---|
| Brand Name: | CNK |
| Interface Type: | SPI |
| Resolution: | 800RGB*(3RGB)*480 |
| application: | LCD |
| Model Number: | CNKT090050-12001A |
| Place of Origin: | China (Mainland) |

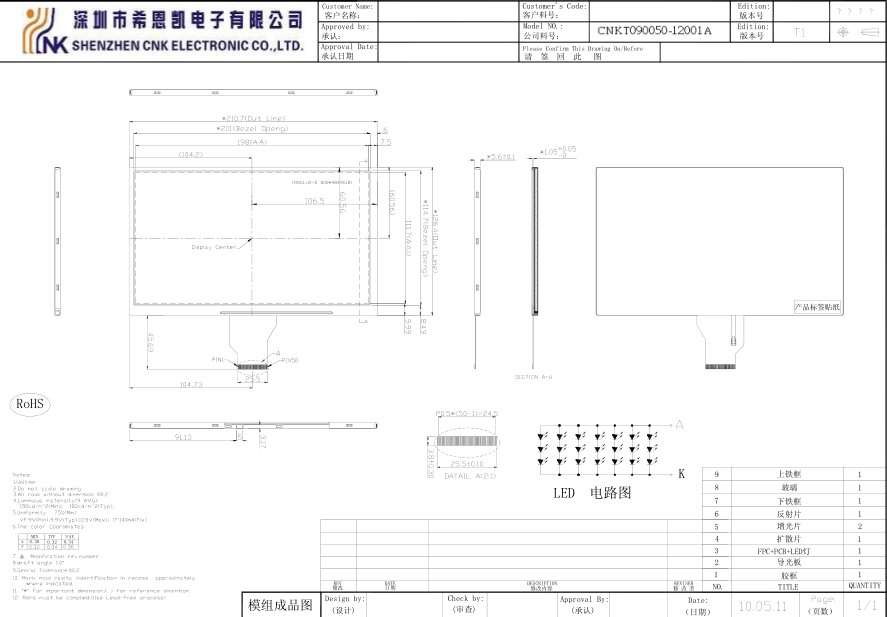

| Dimensional outline: | 210.7x126.4x5.6 |
| LCD Active area: | 198.0(W)x111.7(H) |
| Resolution: | 800RGB*(3RGB)*480 |
| Pixel pitch: | 0.0825(W)x0.2327(H)s |
| Pixel arrangement: | RGB VERTICAL STRIPE |
| Display mode: | Normally white |
| Color Filter Array: | RGB vertical stripes |
| Backlight: | White LED |
| Weight: | TBD |
| Size: | 9 inch |
Quick Details
Specifications
CNK Electronics CO.,LTD.
- Model Number:CNKT090050-12001A
- Dimensional outline:210.7(W)x126.4(H)x5.6(D)
- LCD Active area:198.0(W)x111.7(H)
- Resolution:800RGB*(3RGB)*480
- Pixel pitch:0.0825(W)x0.2327(H)s
- Pixel arrangement:RGB VERTICAL STRIPE
- Display mode:Normally white
- Color Filter Array:RGB vertical stripes
- Backlight: White LED
- Weight: TBD
- Operating Temperature:-10°C~60°C
- Storage Temperature:-20°C~70°C
