1. Products Introduction
the PA type of mini electric hoist we produce can be used in factories, mines, agriculture, electric power, construction building site, dock, and warehouse for installing of the machines, lifting the cargoes. Loading and unloading the trucks.


2. Technical Parameters

Model	Method of Use	Rated volt(V)	Input power(W)	Rated lifting(kg)	Lifting Speed(m/min)	Lifting height(m)	Qty/CTN (pcs)	Packing size	G.W./N.W.(kg)
PA200A	Single-hook Double-hook	220/230/240	480	100 200	10 5	12 6	2	47*37*16	24/22
PA250A	Single-hook Double-hook	220/230/240	510	125 250	10 5	12 6	2	47*37*16	24/22
PA300A	Single-hook Double-hook	220/230/240	600	150 300	10 5	12 6	2	47*37*16	24/22
PA400A	Single-hook Double-hook	220/230/240	950	200 400	10 5	12 6	2	52*42*17	36/34
PA500A	Single-hook Double-hook	220/230/240	1020	250 500	10 5	12 6	2	52*42*17	36/34
PA600A	Single-hook Double-hook	220/230/240	1200	300 600	10 5	12 6	2	52*42*17	36*34
PA700A	Single-hook Double-hook	220/230/240	1250	350 700	8 4	12 6	2	52*42*17	38/36
PA800A	Single-hook Double-hook	220/230/240	1300	400 800	8 4	12 6	2	52*42*17	38/36
PA1000A	Single-hook Double-hook	220/230/240	1600	500 1000	8 4	12 6	1	56*25*35	33/3

3. Products Features

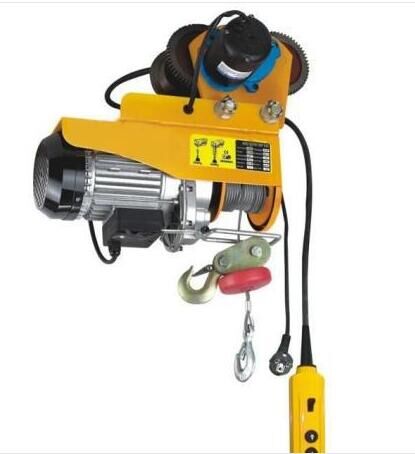

this kind of mini hoist  can be attached to plain trolley, geared trolley or fixed type without electric trolley.
