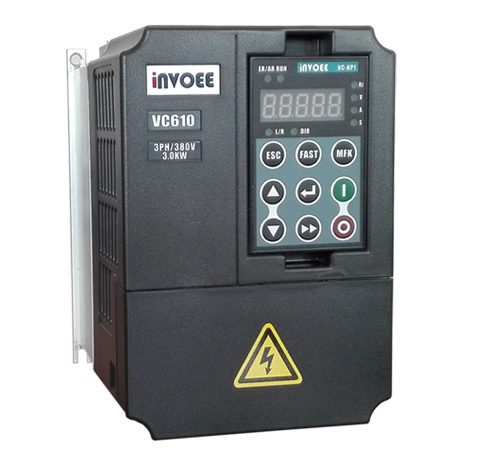

Main parameter of VC610 3.0kw spindle CNC inverter:

1. Item: VC610-4T0030G


2. Control mode: vector

3. Matched motor power: 3.0kw

4. Input frequency and voltage:380~440V,50/60Hz

5. Output frequency: 0.00~650.00Hz

6. Output voltage:0~input voltage

7. Rated output current: 6.8A

8. Guarantee: 3 years


                             General specifications of VC610 motor spindle CNC inverter

Items		Description
Input	Rated frequency and voltage	Three-phase: 380~440V, 50/60Hz; Three-phase/single-phase: 220~240V, 50/60Hz
	Operating range of voltage and frequency	Voltage: ±20%; frequency: ±5%
Output	Voltage	0~input voltage
	Frequency	0.00~650.00Hz
	over-load capacity	1min at 150% of the rated current and 1s at 200% of the rated current
