| Brand Name: | Chenge |
|---|---|
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

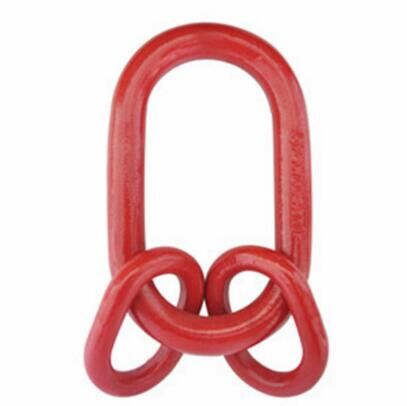

1. Products Introduction
* Designed for coupling with Grade 80 alloy chain or wire rope for over head lifting operations.
* Versatile assembly for multipurpose applications.
* Material: G80 alloy steel(quenched and tempered)
* Proof load: 2.5 times of WLL.
* Safety factory: 4:1.
* Finish: colour painted
* Traceability code, capacity and WLL embossed.
2. Technical Parameters
WLL(t)
|
Main Ring Load(t) |
Intermedium Ring WLL(t) |
Main ring size(mm) |
Intermedium ring size(mm) |
Weight (kg/set) | |||
D |
W |
L |
D |
A | ||||
1 |
1 |
0.7 |
12 |
65 |
130 |
10 |
25 |
0.54 |
2 |
2 |
1.4 |
16 |
65 |
130 |
12 |
25 |
0.91 |
3 |
3 |
2.2 |
20 |
80 |
150 |
14 |
30 |
1.6 |
5 |
5 |
3.5 |
24 |
90 |
160 |
18 |
40 |
2.77 |
8 |
8 |
6.4 |
28 |
100 |
190 |
22 |
40 |
4.45 |
10 |
10 |
7.0 |
32 |
110 |
200 |
26 |
50 |
6.75 |
12 |
12 |
8.4 |
34 |
120 |
230 |
28 |
50 |
8.31 |
16 |
16 |
11.2 |
38 |
135 |
250 |
30 |
60 |
11.38 |
20 |
20 |
14.0 |
42 |
140 |
270 |
35 |
70 |
16.04 |
25 |
25 |
17.5 |
46 |
160 |
310 |
38 |
70 |
20.85 |
30 |
30 |
21.0 |
52 |
180 |
330 |
42 |
80 |
28.94 |
40 |
40 |
28.0 |
56 |
180 |
330 |
45 |
80 |
33.92 |
50 |
50 |
35.0 |
62 |
210 |
410 |
50 |
100 |
50.41 |
63 |
63 |
44.0 |
68 |
210 |
410 |
55 |
100 |
61.87 |
80 |
80 |
56.0 |
76 |
240 |
410 |
65 |
130 |
93.82 |
100 |
100 |
70.0 |
84 |
240 |
460 |
70 |
130 |
117.1 |
120 |
120 |
85.0 |
90 |
254 |
508 |
75 |
140 |
145.5 |
