| After-sales Service Provided: | Overseas service center available |
|---|---|
| Warranty: | 1 year |
| Certification: | ISO,SGS |
| Weight: | different |
| Dimension(L*W*H): | different |
| Model Number: | D001 |
| Brand Name: | Hanzheng |
| Place of Origin: | China (Mainland) |
| Efficiency: | good |
| Type: | Fabric Dust Collector |
| Condition: | New |
| installation: | horizontal |
| operation: | automatic |
| de-dust way: | dry |
| transportaion: | package |
| situation: | new |
| colour: | depending on request |
| material: | steel structure |
Quick Details
Specifications
(MC-ⅡSeries)
Brief:
Impulse type of MC-ⅡPulse-jet bag filter dust collector Belong to reverse jetting pulse., it is a new type of efficient pulse bag Filter improved from MC-I pulse-jet bag dust collector.
Compared with MC-I, the jetting system of MC-II has Been a great improvement, pulse length of valve is enlarged, so the supply Pressure decreased to 0.4Mpa, and the roof of dust collector is improved, the Sealing of roof is strengthened, opening is convenient, and adding to the cover Of jetting device, and the equipment is set in the open (outside)
Technical performance:
MC24-120-Ⅱseries of pulse-jet bag filter dust Collector technical performance:
Item
Model |
Air flow(m3/h) |
Filter area(m2) |
Specification of bag-house |
Number of bag |
Power of ash convey motor(KW) |
Resistance(PA) |
Compressed air | |
Consumption (m3/h) |
Pressure(MPa) | |||||||
MC24-Ⅱ |
1080 |
18 |
?120 ×2000 |
24 |
1.1 |
1200~1500 |
0.1~0.3 |
0.4 |
MC36-Ⅱ |
1620 |
27 |
36 |
1.1 |
0.1~0.3 | |||
MC48-Ⅱ |
2160 |
36 |
48 |
1.1 |
0.2~0.4 | |||
MC60-Ⅱ |
2700 |
45 |
60 |
1.1 |
0.2~0.4 | |||
MC72-Ⅱ |
3240 |
54 |
72 |
1.1 |
0.3~0.8 | |||
MC84-Ⅱ |
1620 |
63 |
84 |
1.1 |
0.3~0.8 | |||
MC96-Ⅱ |
1620 |
72 |
96 |
1.3 |
0.4~1.0 | |||
MC120-Ⅱ |
1620 |
90 |
120 |
1.3 |
0.4~1.0 | |||
MC24-120-ⅡseriesOverall dimension:
Item Specification |
Outside size | ||||
L(mm) |
W(mm) |
H(mm) |
Inlet (mm) |
Outlet (mm) | |
MC24-Ⅱ |
1090 |
1678 |
3667 |
400×300 |
400×300 |
MC36-Ⅱ |
1490 |
1678 |
3667 |
400×300 |
400×300 |
MC48-Ⅱ |
1890 |
1678 |
3667 |
800×350 |
800×300 |
MC60-Ⅱ |
2290 |
1678 |
3667 |
800×350 |
800×300 |
MC72-Ⅱ |
2690 |
1678 |
3667 |
1000×350 |
1000×300 |
MC84-Ⅱ |
3090 |
1678 |
3667 |
1200×350 |
1200×300 |
MC96-Ⅱ |
3390 |
1678 |
3667 |
1600×350 |
1600×300 |
MC120-Ⅱ |
4450 |
1678 |
3667 |
1600×350 |
1600×300 |

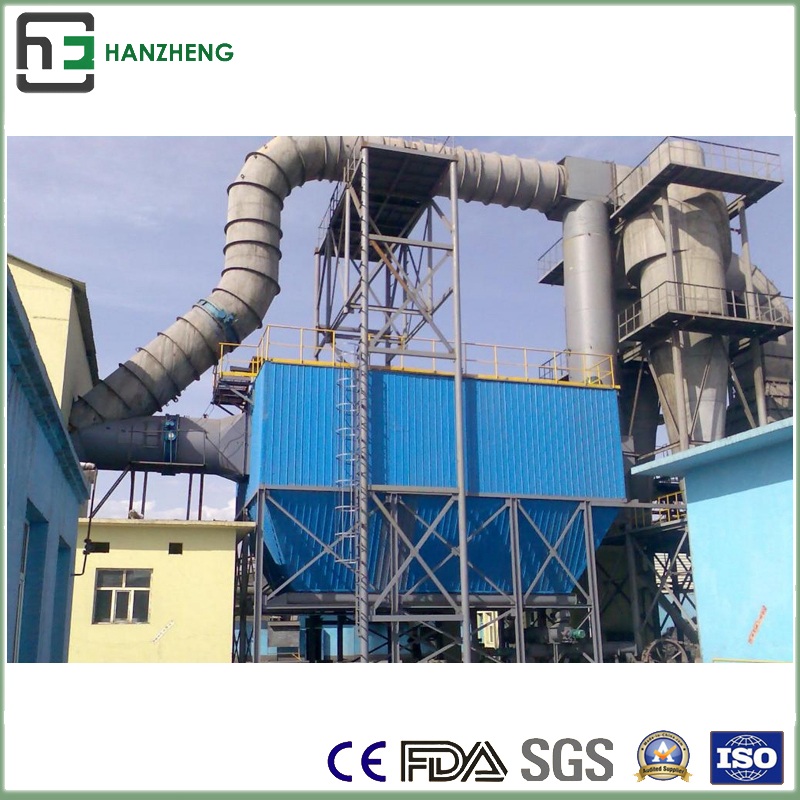

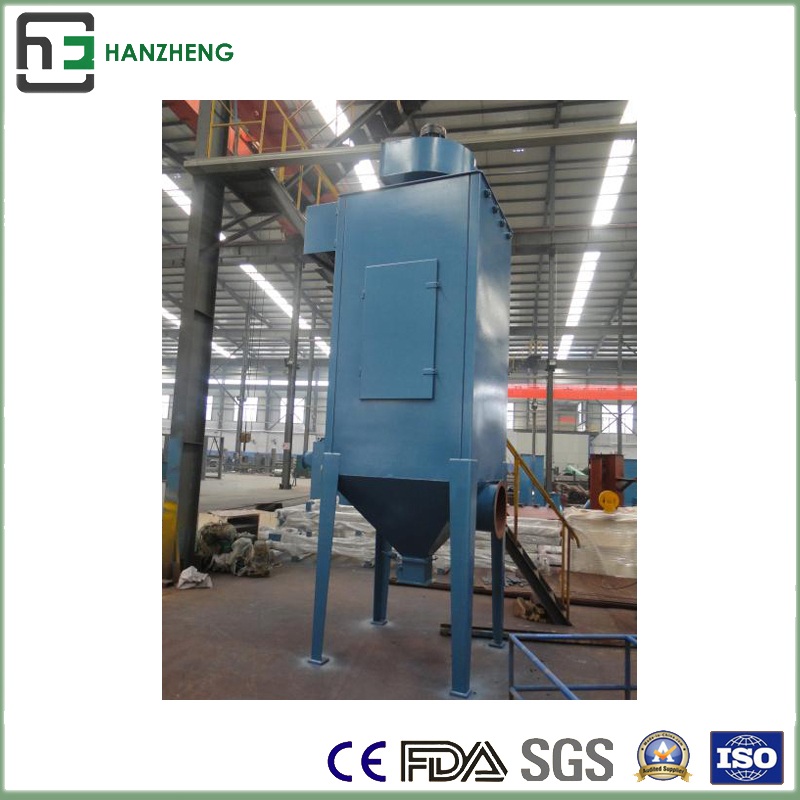

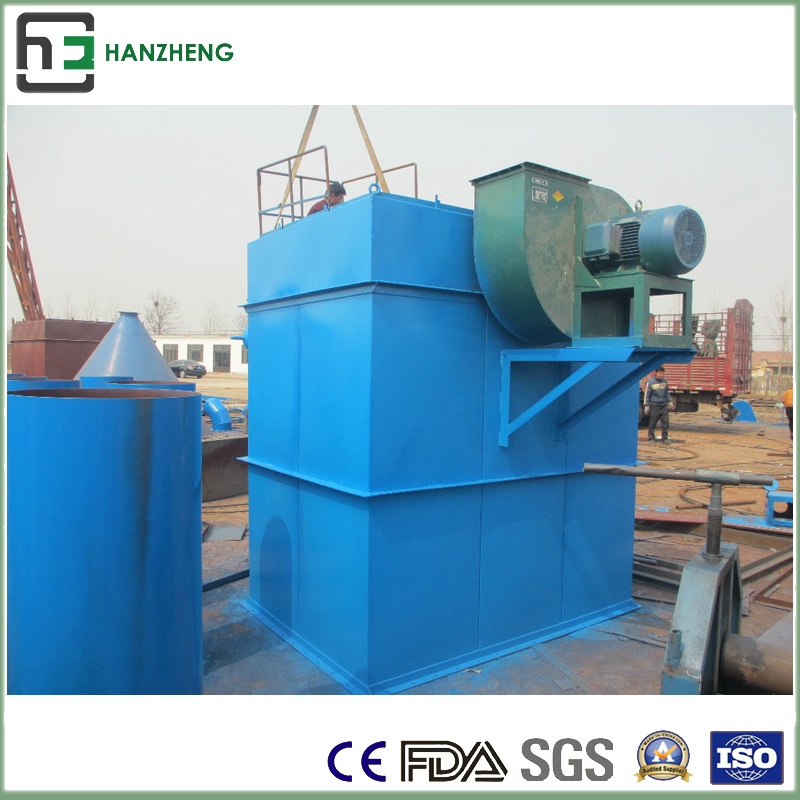

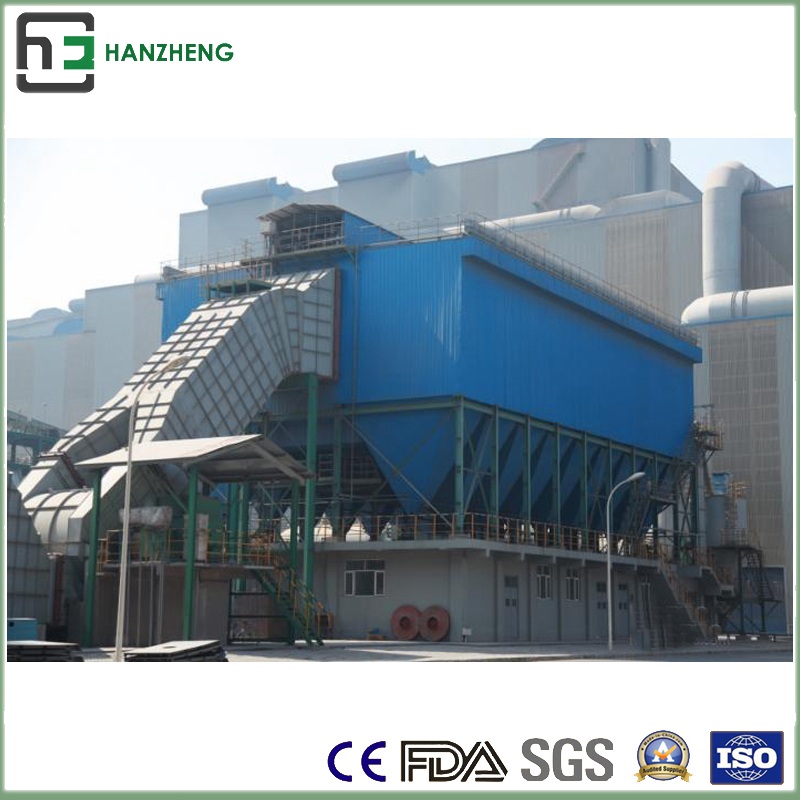

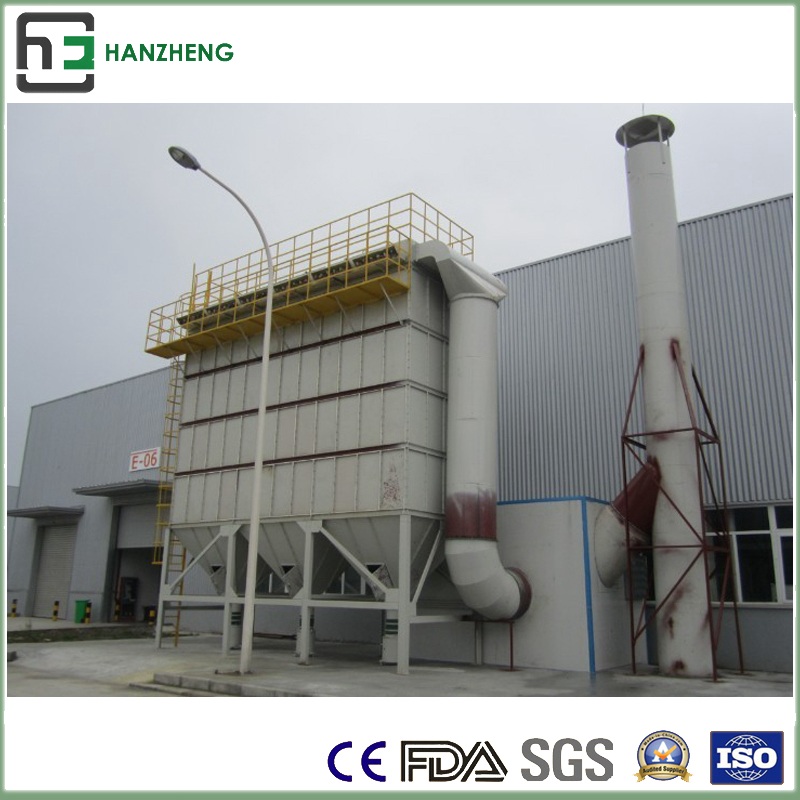

picture:
