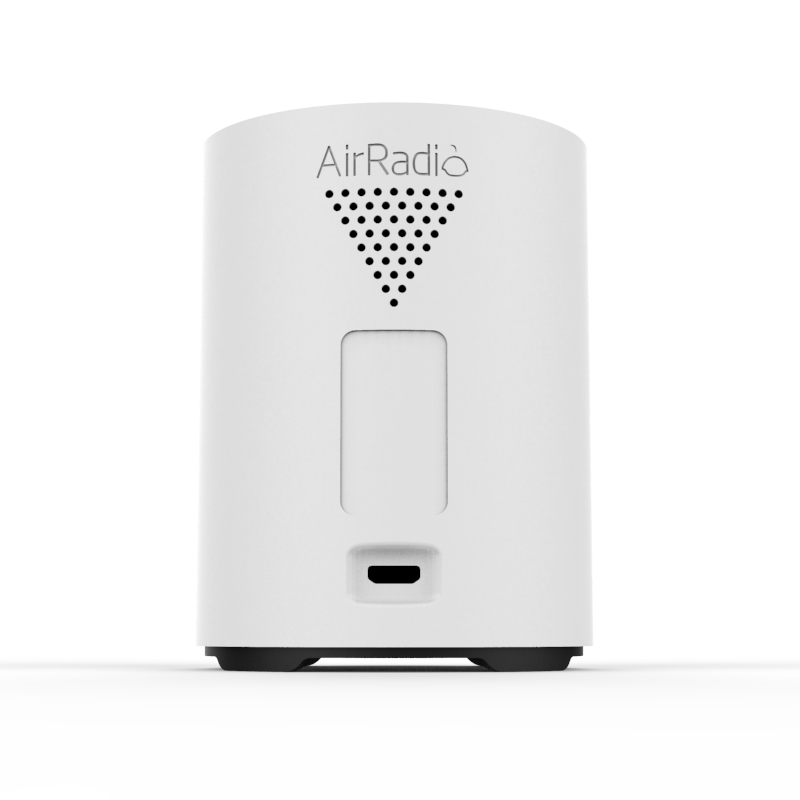

Product Introduction



this product applies independent precise physical sensor that is for measuring temperature, humidity, PM2.5, PM10. It is able to upload the real-time data to cloud when it is connected to network, allowing users to review the environment monitor data, dangerous gas concentration, and share data with others distantly via mobile App.





Normal Work Status

the LED status strip keeps lighting to indicate the PM2.5 concentration with three levels differentiated by three different colors.



Green: 0<=PM2.5<=35, level one, excellent

Yellow: 35<PM2.5<=115, level two, good

Red: 115<PM2.5<=999, level three, serious polluted





   Technology Specification



Power Supply		Internal lithium battery/external standard power adapter
Communication		WiFi /BLuetooth
Display		LED strip / mobile App
Power Adapter		5V / 1A
Battery		Single lithium polymer battery
Operation Temperature		0 ~ 50℃
Monitor Range	Temperature	-20~70℃(±2℃)
	Humidity	0~100%RH(±5%RH)
	PM2.5	0~999ug/m3(±10%)
	PM10	0~999ug/m3(±10%)
