| Type: | Crimp Terminal |
|---|---|
| Model Number: | TB01FTTH16 |
| Brand Name: | T&J |
| Place of Origin: | China (Mainland) |
| Max. capacity: | 16 fibers |
| Material of patch panel: | Cold Rolled Steel |
| Color: | Black and Ivory white |
| Application: | FTTH outdoor installation |
| Adaptor: | SC, LC, FC, ST etc. |
| Environmental Temperature: | -25C~ +60C |
| Size: | 260*320*90mm |
| Lockable: | Yes |
| Delivery Date: | 15-working days |
| Origin: | China |
Quick Details
Specifications
TB01FTTH16 FTTH Outdoor Waterproof Terminal Box
Part number:TB01FTTH16
Feature
Industry Standard User Interface is made of Cold rolled steel
Can accommodate 1x4, 1x8, 1x16 & 1x32 PLC splitter.
Anti-UV, Ultra violet resistant and rainfall resistant.
up to 32 FTTH drops.
Wall and pole mountable.
2 inlet ports, 4~32 outlet ports.
the adaptors availble in SC, FC, LC, SC etc.
Application
Widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Local Area Networks
Ordering Information:
Model |
Capacity |
Dimension |
TB01FTTHT04 |
4 port |
210*140*40mm |
TB01FTTHT08 |
8 port |
205*215*55mm |
TB01FTTHT12 |
12 port |
260*320*90mm |
TB01FTTHT16 |
16 port |
260*320*90mm |
TB01FTTHT32 |
32 port |
420*380*130mm |
LOGO printed is acceptable.
Packing:1 piece/inner box
Customer's brand or LOGO available to stick on the box.
or customed box available.

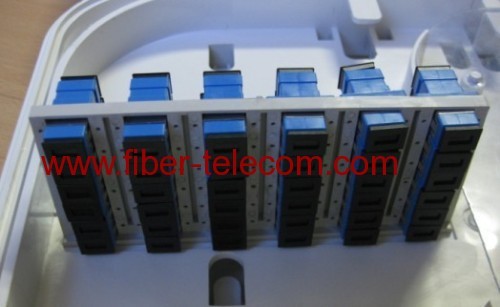

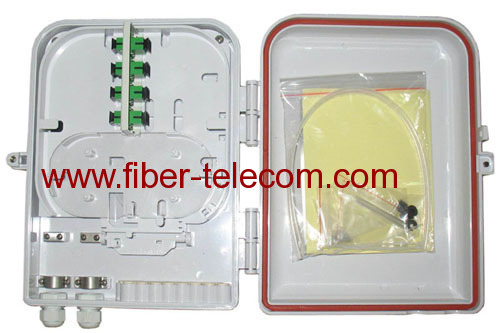

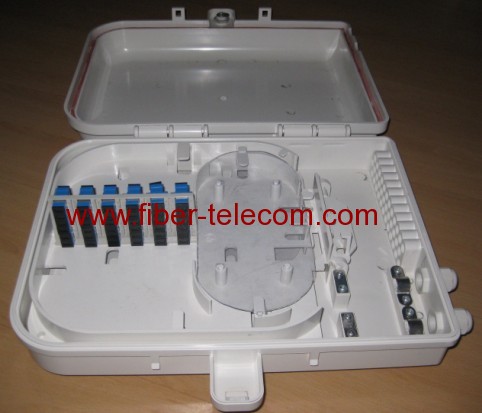

FTTH Outdoor Waterproof Terminal Box
