| Model Number: | 15x5 12x4.5 16x5x12 |
|---|---|
| Brand Name: | WonRay, WRST |
| Place of Origin: | China (Mainland) |
| OEM No.: | Genie 105454 |
| Truck Model: | Dongfeng |
| Diameter: | 11" - 15" |
| Certification: | DOT |
| Width: | < 165mm |
| Type: | Solid Tire |
| Tire Design: | Radial |
| color: | grey or white |
| manufacturer: | yantai wonray rubber tyre |
| advantage: | high loading capacity, puncture resistant |
| warranty: | 2 years |
Quick Details
Specifications

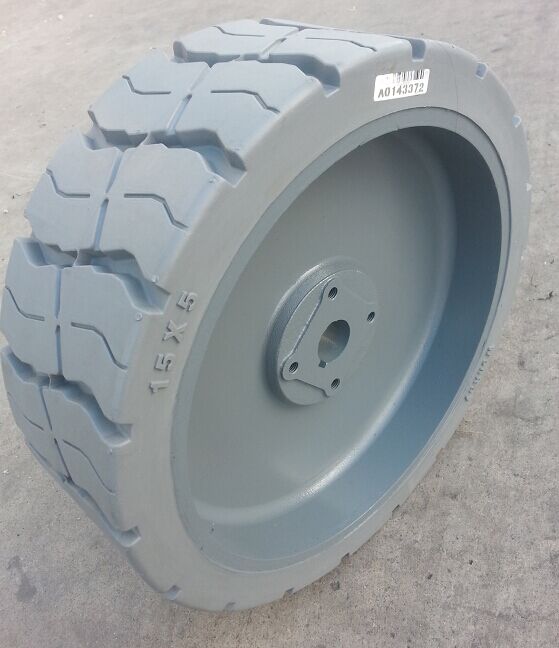

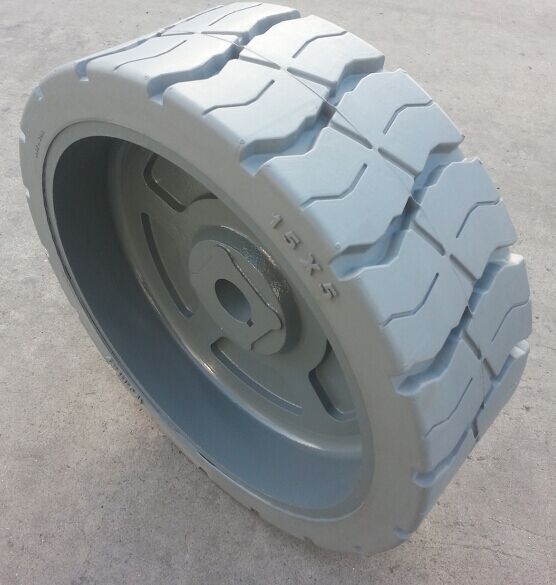

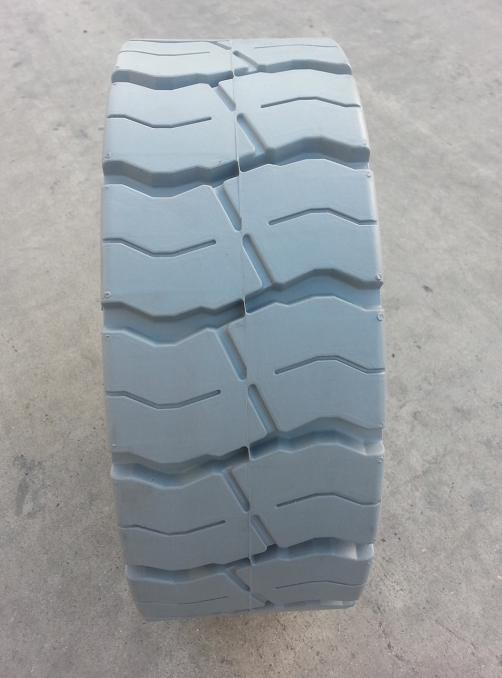

Genie jlg skyjack haulotte scissor lift tire wheels 15x5 12x4.5 16x5x12
Specification of Solid Tires and Wheels for Scissor Lifts
| No. | SIZE/RIM | Pattern No. | Outside Diameter (mm) |
Section Width (mm) |
Net Weight (Kg) |
| ±5mm | ±5mm | WonRay | |||
| 1 | FB10*3(grey cast iron) | R706 | 254 | 74 | 7.5 |
| 2 | FB10*4 (with RIM) | R706 | 256 | 101.6 | 5.9 |
| 3 | 12*4 (with brake) | R707 | 310 | 100 | 7.9 |
| 4 | 12*4 (W/O brake) | R707 | 310 | 100 | 7.4 |
| 5 | FB 12*4.5(grey iron)(-2same this) | R707 | 310 | 115 | 15.3 |
| 6 | FB 12*4.5(ductile iron) | R707 | 310 | 115 | 15.3 |
| 7 | FB 14*4 1/2 | R713 | 358 | 114 | 14.3 |
| 8 | FB 15*5(grey iron) | R712 | 384 | 127 | 22.3 |
| 9 | FB 15*5(ductile iron) | R712 | 384 | 127 | 22.3 |
| 10 | FB 15*5-2(grey iron) | R712 | 384 | 127 | 21.1 |
| 11 | 16*5*12(with brake) | R706 | 406 | 125 | 15.8 |
| 12 | 16*5*12(W/O brake) | R706 | 406 | 125 | 14.6 |
| 13 | FB22*7*17 3/4 | R714 | 559 | 176 | 50 |
| 14 | FB 406*125(JLG16*5*12) | R706 | 406 | 125 | 17.7 |
| 15 | FB406*127 | R713 | 406 | 127 | 21.3 |
| 16 | FB 323*100 | R713 | 323 | 100 | 9.4 |
| 17 | 12.5x4.25 | R712 | 320 | 108 | 18 |
