| Type: | Crimp Terminal |
|---|---|
| Model Number: | BHT |
| Brand Name: | WZOG |
| Place of Origin: | China (Mainland) |
| material: | copper |
| surface treatment: | tin plating |
| insulation material: | nylon |
| color: | red ,blue, yellow |
| wire range: | 22-16 16-14 12-10AWG |
| Imax: | 48A |
Quick Details
Specifications
Product feature:
| 1 | Product Name | Manufacturer of BHT Nylon Copper Connectors Insulated Heat shrink butt Terminals |
| 2 | Terminal Material | Copper Butt Terminals |
| 3 | Insulated Material | Nylon Butt Terminals |
| 4 | Working Temperature | -40℃~150℃ |
| 5 | Feature | Anti-corrosion,Insulated Butt Terminals |
| 6 | Color | Red,Yellow,Blue Copper Terminal |
| 7 | Certificate | CE,ROHS Copper Terminals |
| 8 | Usage | Transformer Copper Terminal |
| 9 | Delivery time | 15~20 days after get the down payment. |
| 10 | Payment terms | FoB Shanghai/Ningbo,30%T/T |
| 11 | Packing | 100pcs/bag, then into inner box, then into cartons. Provide OEM packing. |
Technical data:

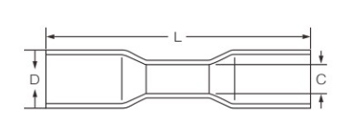

| ITEM NO | Dimension(mm) | WIRE RANGE /mm2 | Color | ||
| L | D | c | |||
| BHT1.25 | 37 | 6 | 1.7 | 22-18AWG 0.5-1.0mm2 | Red |
| BHT2 | 37 | 7.5 | 2.3 | 16-14AWG 1.5-2.5mm2 | Blue |
| BHT5.5 | 52 | 8 | 3.4 | 12-10AWG 4-6mm2 | Yellow |
Our certification:
Company profile:
Packing and delivery:
1. the normal packing is 100 pcs per bag, one bag in a box, carton outside.
2. It also can be packed as your requirement.
