| Application: | Networking |
|---|---|
| Brand Name: | T&J |
| Place of Origin: | China (Mainland) |
| Type: | Cat 5e |
| Weight: | 28.5 /kg |
| Number of Conductors: | 4 pair |
| Nominal Outer Diameter: | 5.0mm |
| Conductor: | SolidBare copper |
| Nom.O.D.(mm): | 0.500 |
| Insulation material: | HDPE |
| Sheath Surface: | Clean,Frap,Satiation |
| Sheath Material: | PVC(complies RoHS) |
Quick Details
Specifications
Product Description

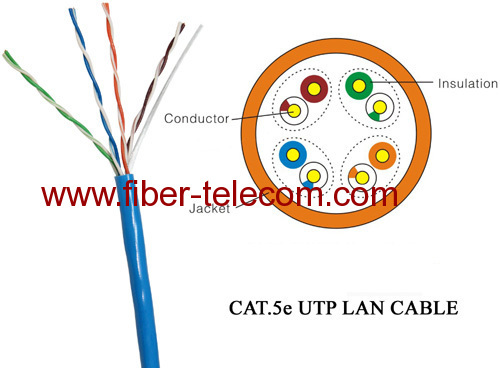

CAT5e UTP cable 4pairs PVC sheath
Description:
A multipair (usually 4 pair) high performance cable that consists of twisted pair conductors, used mainly for data transmission.
Category 5E is recommended for all new installations, supports a frequency range of up to 100MHz and is designed for transmission speeds of up to 1 gigabit per second (Gigabit Ethernet).
| Standards: | ISO/IEC11801 | TIA/EIA 568B | ||||||
| Conductor: | Solid bare copper, AWG24(0.5mm) (finished conductor size will be 0.493-0.498mm) | |||||||
| Nsulation: | HDPE (High Density Polyethylene) | |||||||
| Jacket: | PVC | |||||||
| Thickness: | 0.5mm | |||||||
| Color: | Grey or as required | |||||||
| Black ink printing: | E220470 (UL) CM 4PR 24AWG UTP CAT5e (xx) PEARL 6102 TIA/EIA 568B + meter marking or as required. | |||||||
| Rated temperature: | -60℃~+70℃ | |||||||
| Weight: | 28.50kg/km | |||||||

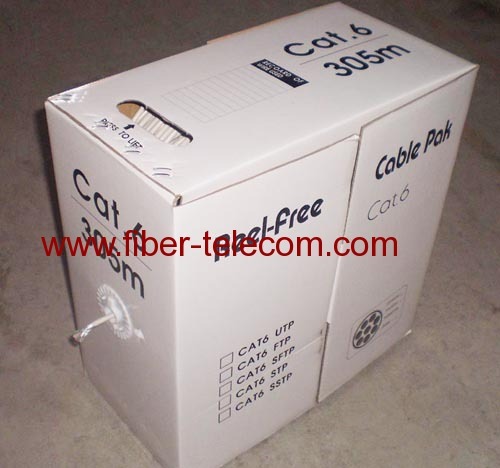

| Packing: | 305m/box | |||||||
| Electrical characteristics: | ||||||||
| Frequency | Impedance | RL | Attenuation | next Worst Pair | next Power Sum | ELFEXT | ELFEXT | Nominal |
| MHz | ohm | dB | DB/100m | dB | dB | Worst Pair dB | Power Sun dB | Velocity Propagation |
| 0.772 | 100+15 | 19.4 | 1.8 | 67 | 64 | 66 | 63 | 0.65 |
| 1 | 20 | 2 | 65.3 | 62.3 | 63.8 | 60.8 | ||
| 4 | 23 | 4.1 | 56.3 | 53.3 | 51.7 | 48.7 | ||
| 8 | 24.5 | 5.8 | 51.8 | 48.8 | 45.7 | 42.7 | ||
| 10 | 25 | 6.5 | 50.3 | 47.3 | 43.8 | 40.8 | ||
| 16 | 25 | 8.2 | 47.3 | 44.3 | 39.7 | 36.7 | ||
| 20 | 25 | 9.3 | 45.8 | 42.8 | 37.7 | 34.7 | ||
| 25 | 24.3 | 10.4 | 44.3 | 41.3 | 35.8 | 32.8 | ||
| 31.25 | 23.6 | 11.7 | 42.9 | 39.9 | 33.9 | 30.9 | ||
| 62.5 | 21.5 | 17 | 38.4 | 35.4 | 27.8 | 24.8 | ||
| 100 | 20.1 | 22 | 35.3 | 32.3 | 23.8 | 20.8 | ||
